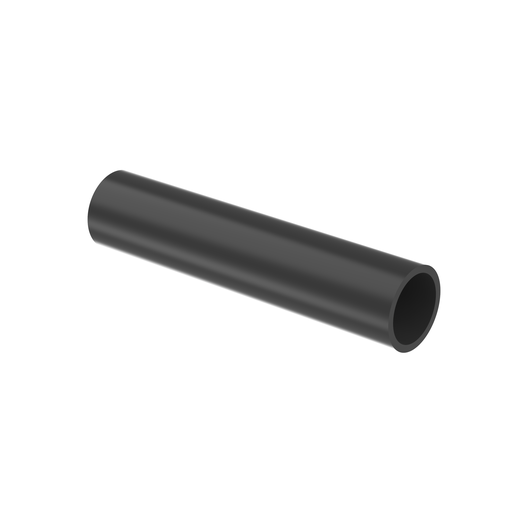

Panduit HST1.1-48-5Y 48" Heat Shrink, Thick Wall, Adhesive Lined 1.1" (27.9mm) Min Expanded I.D.

Manufacturer: PANDUIT | Catalog # HST1.1-48-5Y | Codale Part # 3390802
$70.04/ea
ea
Log in or register to view your price, purchase history, and more!
59 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The HST1.1-48-5Y Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90.C continuous use. Shrink ratio: 3:1. Temperature range: -67.F to 230.F (-55.C to 110.C). Cross-linked Polyolefin. 1.1" (27.9 mm) dia. 48" (1219.2 mm) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-55 to 110 degrees C
Type
Flame Retardant

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Wet-Shrink™

General Product Info

12-Digit UPC
074983107315
Color
Black
Product UPC
07498310731
Weight
2.7500 lb

Dimensions

Inside Diameter
9.5 mm
Outside Diameter
27.9 mm
Overall Length
4 ft
Thickness
3 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Canada

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AS23053
Prop 65
  • No
