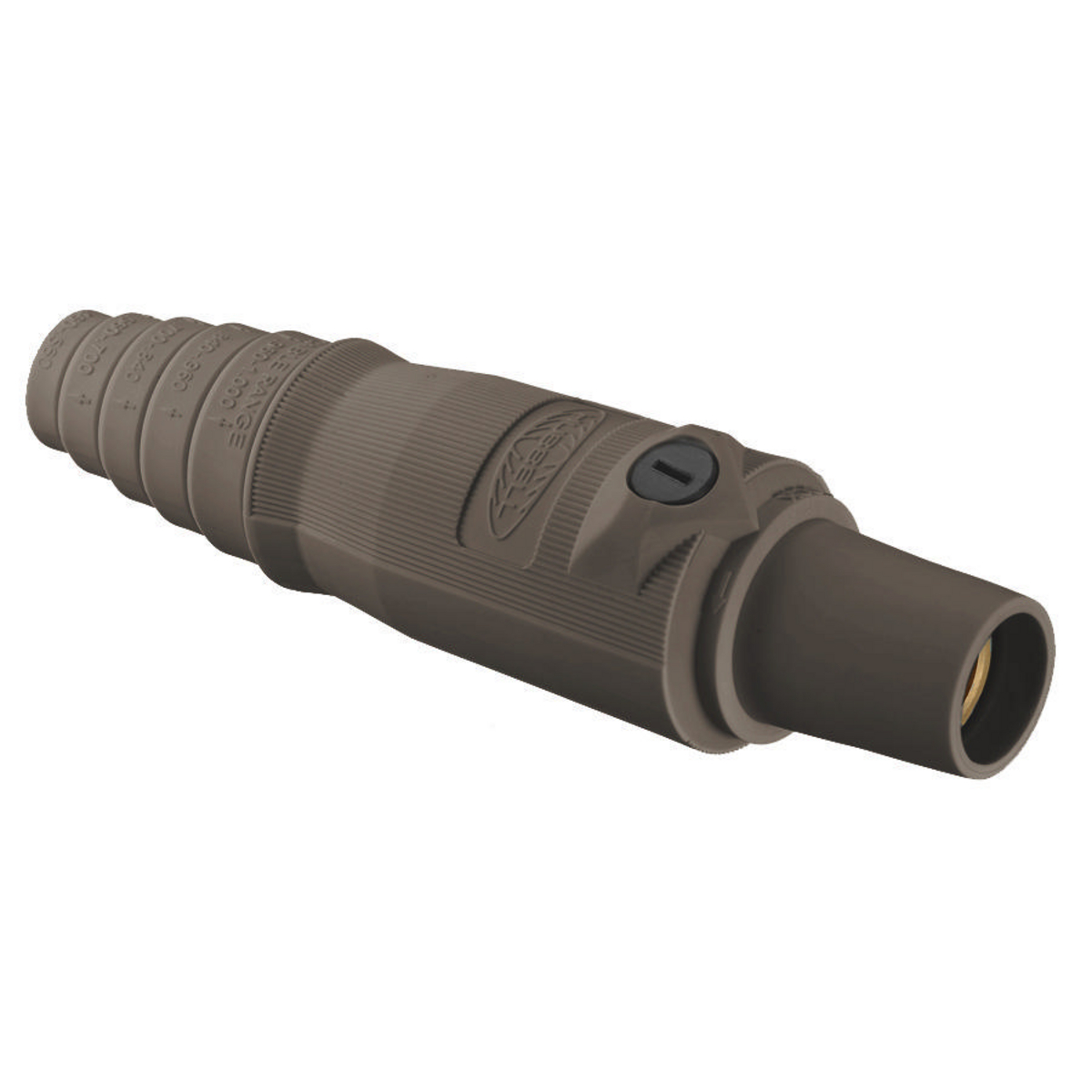

Product image for Hubbell HBL300FBN Single Pole, 300A FeMale Plug, BROWN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL300FBN Single Pole, 300A FeMale Plug, BROWN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL300FBN | Codale Part # 3390858
$138.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Brown

Technical Information

Amperage
300 Amp
Applications
For High Ampacity Connections
Conductor Size
4-2/0 AWG
Connection Type
Pressure Screw Terminal
Cord Type
Listed SC/PPC Type
Current
300 Amp
Material
Composite
Number of Conductors
1
Number of Poles
1 Pole
Number of Ports
1
Number of Wires
1 Wire
Size
Standard Sized
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Female
Tc Connection
Pressure Terminal Screws
Type
SC/PPC, Standard
Voltage
600 AC, 250 DC Max Volt
Wattage
240000 Watt
Wire Size
4-00 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Single Pin

General Product Info

12-Digit UPC
783585112022
Color
Brown
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Series 16
Product UPC
78358511202
Weight
0.8500 lb

Dimensions

Height
2.1 Inch
Length
6.9 Inch
Width
5.110 in

Certifications and Compliance

Country of Origin
China
Features
  • Extra Long non-conductive inner sleeve
  • Turn and Lock Symbol aids in the mating of devices
  • Easily Identifiable Cable with cut off points for secure fit
