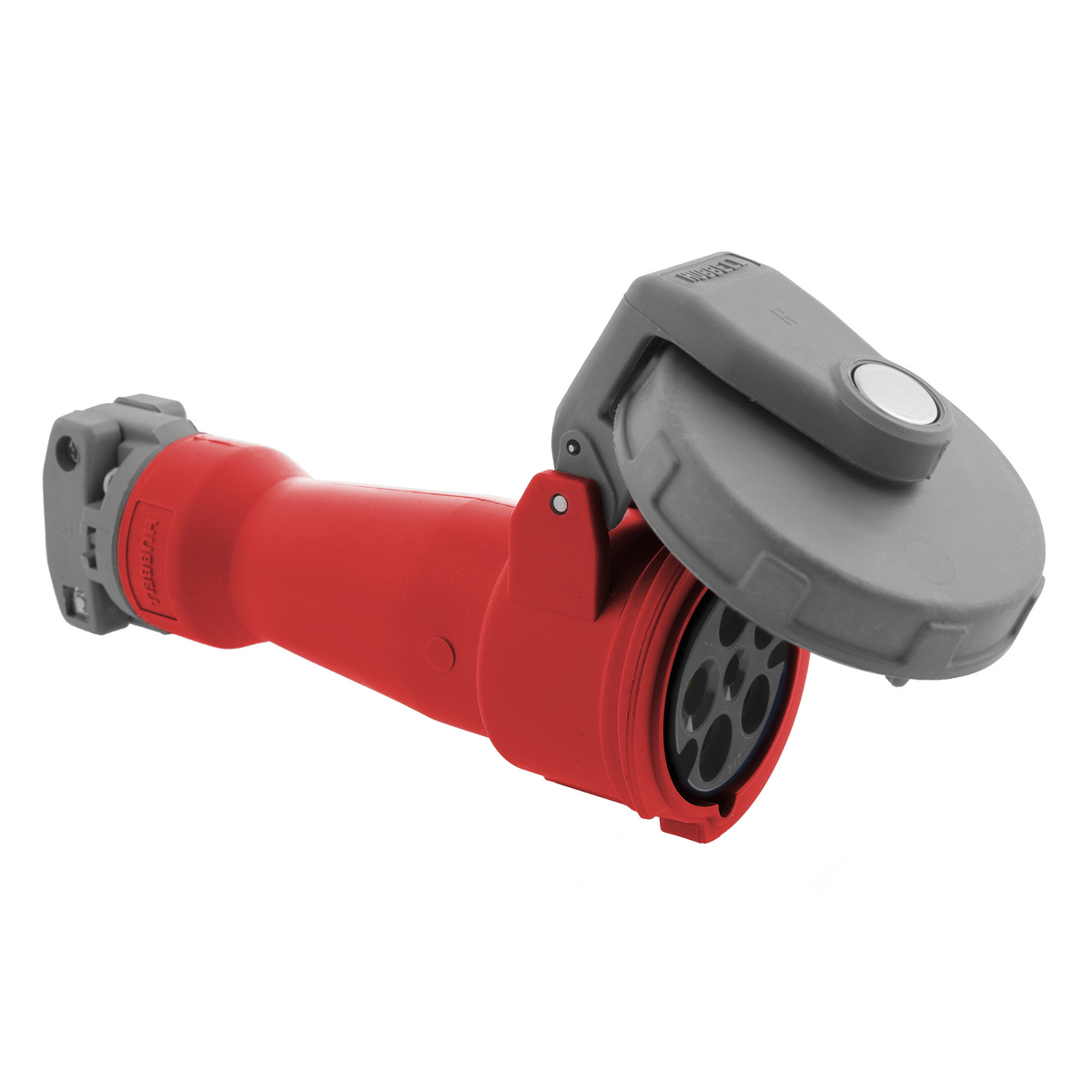

Product image for Hubbell HBL516C6W PS, IEC, CONN, 4P5W, 16A 380-415V, w/T
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL516C6W PS, IEC, CONN, 4P5W, 16A 380-415V, w/T

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL516C6W | Codale Part # 3391334
$321.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 16A 380/415V, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
16 Amp
Applications
High Ampacity Connections
Current
16 Amp
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 degrees C
Type
Standard
Voltage
240/415 Volt
Wire Count
5

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585405209
Color
Red
Product Series
HBL Heavy Duty
Product UPC
78358540520
Weight
1.6 lb

Dimensions

Height
4-1/4 Inch
Length
9 Inch
Width
4.300 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Insulated Non-Metallic housing
  • Color coded housings by voltage for easy identification
  • Water-Tight
  • Corrosion-resistant self-closing gasketed cover
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - 3000V AC
  • Electrical - Max. Working Voltage - 600V RMS
  • Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1
  • Environmental - Operating Temperatures - Maximum Continuous 75°C
  • Minimum - 40°C w/o impact
  • Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682
  • Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Industry Standard(s)
  • CSA Certified File LR280C
  • UL Classified to IEC 60309-1 IEC 60309-2
  • UL Listed, File E146033
Voltage Rating
  • 220/380 V V
  • 240/415 V V
