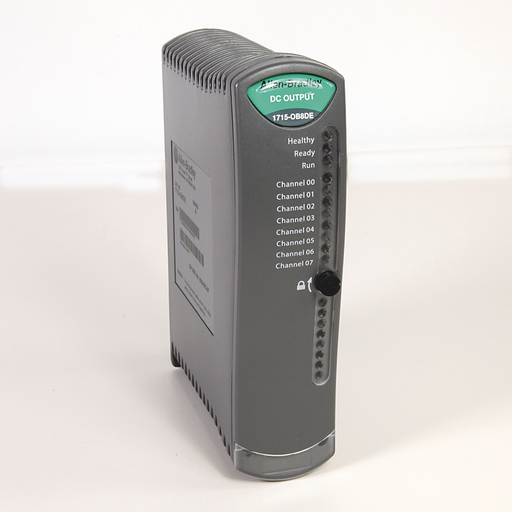

Product image for Allen Bradley 1715-OB8DE 1715 8 Point Digital Output Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 1715-OB8DE 1715 8 Point Digital Output Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 1715-OB8DE | Codale Part # 3391735
$2,752.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
1715 8 Point Digital Output Module

Technical Information

Applications
Redundant I/O
Display Type
Module Health And Status
Enclosure
None (open style)
Mounting Type
DIN-Rail
Number of Channels
8
Operating Temperature
-13 To 158 degrees F
Output Signal
1A @18-32 VDC per Output
Output Voltage
18-32 V
Power Supply
165ma @24VDC
Standard
C-TICK,CE,GOST,KC
Type
digital output

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlLogix

General Product Info

12-Digit UPC
885630010748
Product UPC
88563001074
Weight
1.2300 lb
Features
  • Provide input voltage data for line monitoring and field fault detection
  • Offer 420 mA input
  • Built-in diagnostic testing
  • Eight isolated output channels per module
  • Provide secure communication between modules for fault tolerant operation
  • Offer 420 mA output
  • Offer 24V DC input
  • Offer fail-safe design and operation
  • 16-channel connection capability
  • Offer flexible, modular construction for user-configurable I/O applications
  • Offer 24V DC output
  • Provide I/O redundancy for system requiring high availability
  • Provide voltage and current monitoring on each channel with reverse current protection
  • Suitable for simplex and duplex connections and for fault tolerant applications
  • Include two-terminal current regulating device
  • Allow module removal and replacement online with no interruption of the signal inputs
  • Support short circuit and open circuit line fault detection
  • Require no additional hardware or programming software
  • Provide duplex series output switches with overload protection for each channel
  • Support as many as eight field devices
  • Allow dual redundant field power feed capabilities without requiring external diodes
