Product image for Hoffman SF0424414 IP54 4" Filter Fan 24V 7035
Image thumbnail 0
Image thumbnail 1
Email

Hoffman SF0424414 IP54 4" Filter Fan 24V 7035

Manufacturer: nVent Hoffman | Catalog # SF0424414 | Codale Part # 3393304
$161.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
IP54 4" Filter Fan 24V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 4.13x4.13x2.17

Technical Information

Amperage
1 Amp
Applications
Industrial
Current
0.10 Amp
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Number of Phases
1 Phase
Size
4.13x4.13x2.17 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,Type 12,UL/cUL Recognized
Type
SF04 16 CFM (28 m3/hr.) Side-Mount Filter Fan
Voltage
24 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510199883
Finish
Gray
Product UPC
78351019988
Weight
.73 lb

Dimensions

Depth
2.17 Inch
Height
4.13 Inch
Width
4.13 in
Features
  • Optional thermostat available to save energy and extend service life
  • Similar cut-out sizes as other filter fan manufacturers
  • Enclosure side wall mounting
  • Simple snap-open grille for easy filter replacement
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Standard foam-in-place gasket
  • Terminal wire connections
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
Applications
  • Food and beverage process controls
  • Industrial automation
  • Wind energy systems
  • Automotive assembly
  • Package handling equipment
Accessories
  • Rain shroud
  • Replacement filters
  • Thermostat
Finish
  • RAL 7035 light-gray, UV-resistant plastic standard
  • RAL 9011 black, UV-resistant plastic optional
Specifications
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C

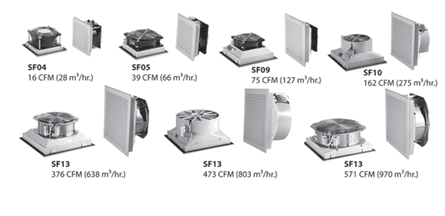

  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Service life hours from 40000 to 70000 hours
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
