3M DBR/Y-6 Red/Yellow Direct Bury Splice Kit

Manufacturer: 3M | Catalog # 7000058827 | Codale Part # 3394777
$11.20/ea
ea
Log in or register to view your price, purchase history, and more!
104 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet

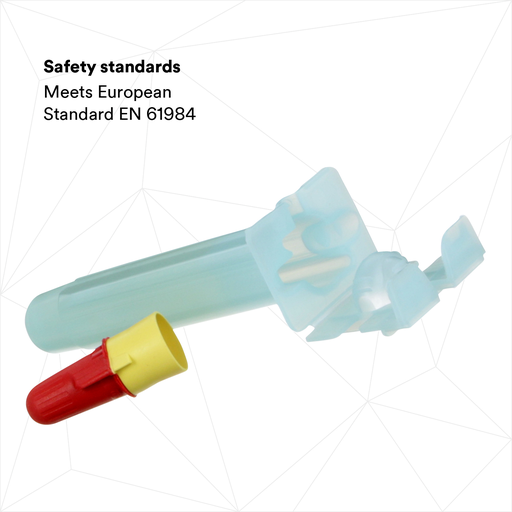

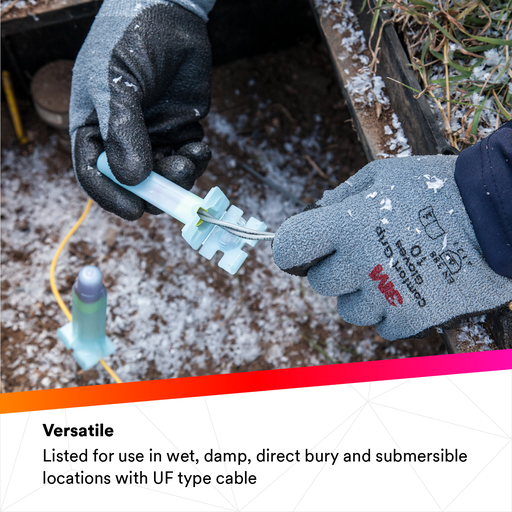

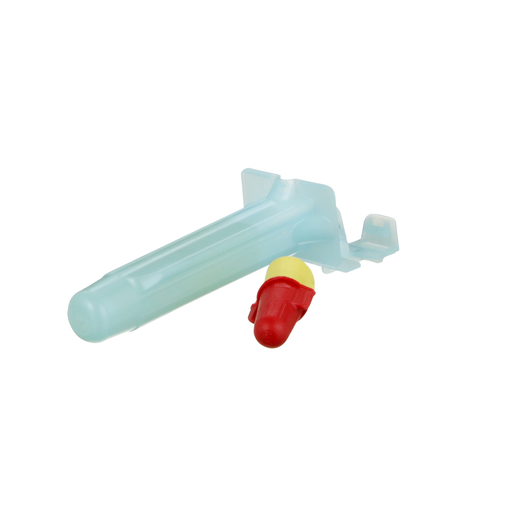

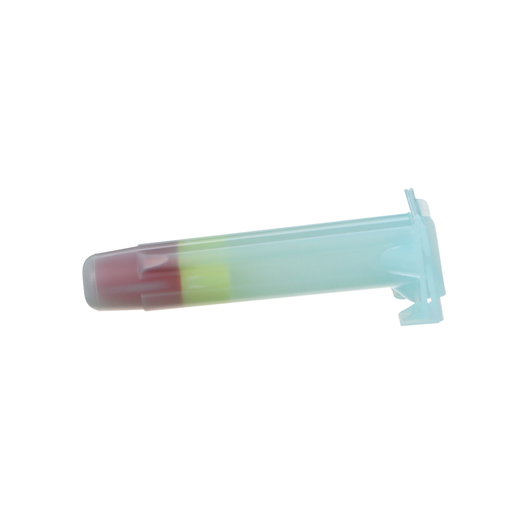

The 3M™ Direct Bury Splice Kit is used to electrically connect two or more pre-stripped copper wires and moisture seal the connection for direct burial. This flame-retardant kit is rated up to 600V, and is UL-listed for direct bury applications. It is suitable for water-intensive applications such as golf courses, irrigation controls and outdoor lighting. This kit contains a 3M™ Spring Connector R/Y+ and a high-impact, UV-resistant tube prefilled with 3M™ Moisture-Resistant Grease.

Technical Information

Conductor Size
10 AWG
Connection Type
Wire
Flame Retardant
UL-94 V-2
Insulation Material
UV Resistant Polypropylene
Max Operating Temperature
105.0 degrees C
Max Voltage
600 V
Operating Temperature
-40 degrees C
Size
18 - 10 AWG
Tc Connection
Direct Bury
Temperature Rating
32 to 120 F
Type
Direct Bury
Wire Size
18-10 AWG

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
051128585733
Color
Red
Product Type
Connector
Product UPC
05112858573
Weight
0.1000 lb

Certifications and Compliance

Country of Origin
USA
Features
  • UL Listed for 600 volts in direct bury applications, UL 486D approved
  • Twist-on design for quick connection
  • Use for appliances, fixtures, automotive, marine; commercial, industrial, residential construction
  • Delivers uniform holding power
  • Withstands temperatures up to 221F (105C)
  • Not recommended for long-term continuous submersion
