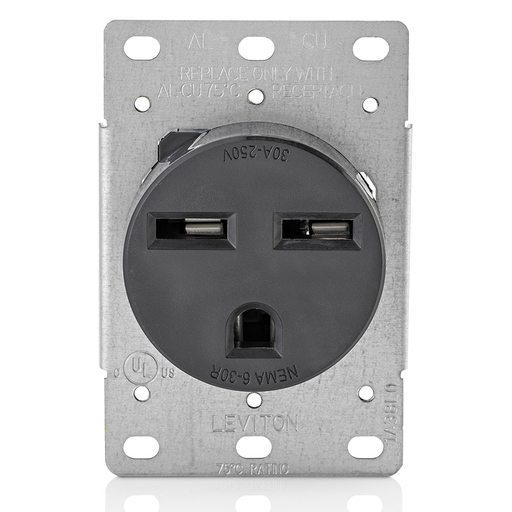

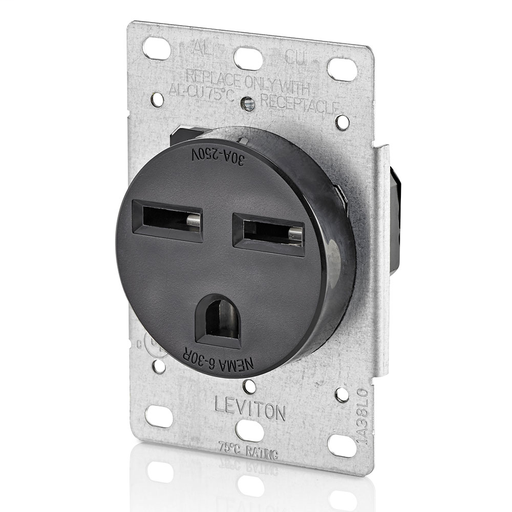

Leviton 5372 250 Volt 30 Amp 2-Pole 3-Wire NEMA 6-30R 2 Hp Black Nylon Grounding Flush Mount Straight Blade Receptacle

Manufacturer: Leviton | Catalog # 5372 | Codale Part # 339498
$2,700.43/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
61 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Technical Information

Amperage
30 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
4 AWG
Contact Material
Brass
Contact Type
Double-Wipe
Device Type
Power Device
Dielectric
2000 V
Dielectric Strength
2000 (Min.) V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
2 hp
Material
Thermoplastic
NEMA
6-30R,WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Size
3.75 H x 2.50 W x 2.10 D IN
Standard
ANSI C-73
Tc Connection
Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
150 %
Terminal Size
4 AWG
Type
Power Receptacle
Voltage
250 Volt
Wire Count
3
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477823507
Color
Black,Orange,White
Product UPC
07847782350
Weight
0.3500 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
