Hubbell HBL460MIFS2W Pin & Sleeve IEC Fused Insulgrip® Mechanical Interlock, 60A 3P4W, 600/250V Max AC/DC, NEMA 4X

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL460MIFS2W | Codale Part # 3394984
$4,214.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Indulgrip Pin and Sleeve Devices, Industrial Grade, Female, Fused Mechanically Interlocked Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws

Technical Information

Amperage
60 Amp
Applications
High Ampacity Connections
Conductor Size
8-2 AWG
Current
60 Amp
Grounding
Grounding
Material
Composite
Mounting Type
Screw
Number of Phases
1,3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
Canada,For US,UL
Tc Connection
Pressure Plate
Type
Fused, Mechanically Interlocked, Single
Voltage
250 Volt
Wattage
36000 Watt
Wire Count
4
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585514901
Color
Gray
Environmental Conditions
Watertight
Product Series
Fused Interlocks
Product UPC
78358551490
Weight
18.75 lb

Dimensions

Height
9 Inch
Length
20.4 Inch
Width
12.4 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Poland
Features
  • Spring-loaded receptacle liftcover with gasket

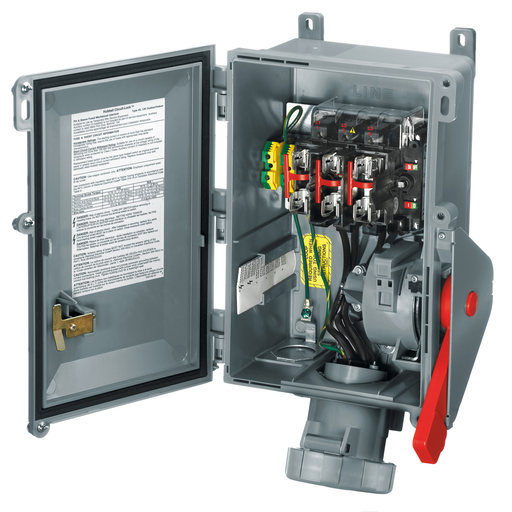

  • Removable door for ease of wiring and installation

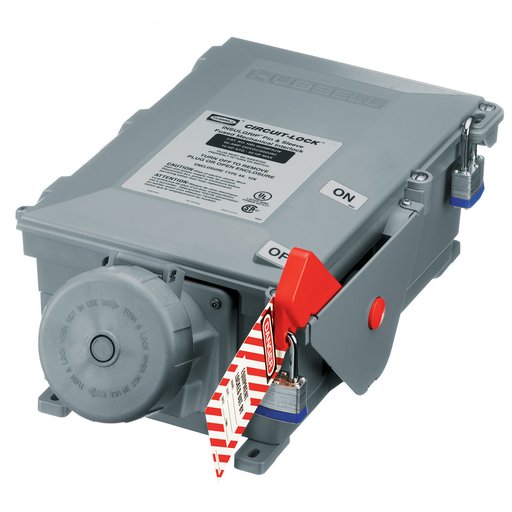

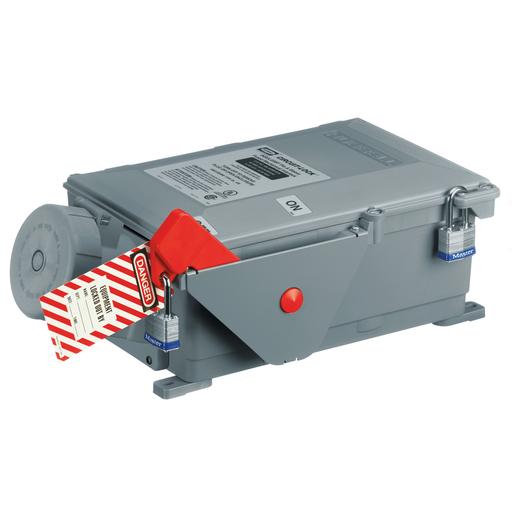

  • High visibility red handle can be locked in the OFF position
  • Watertight
