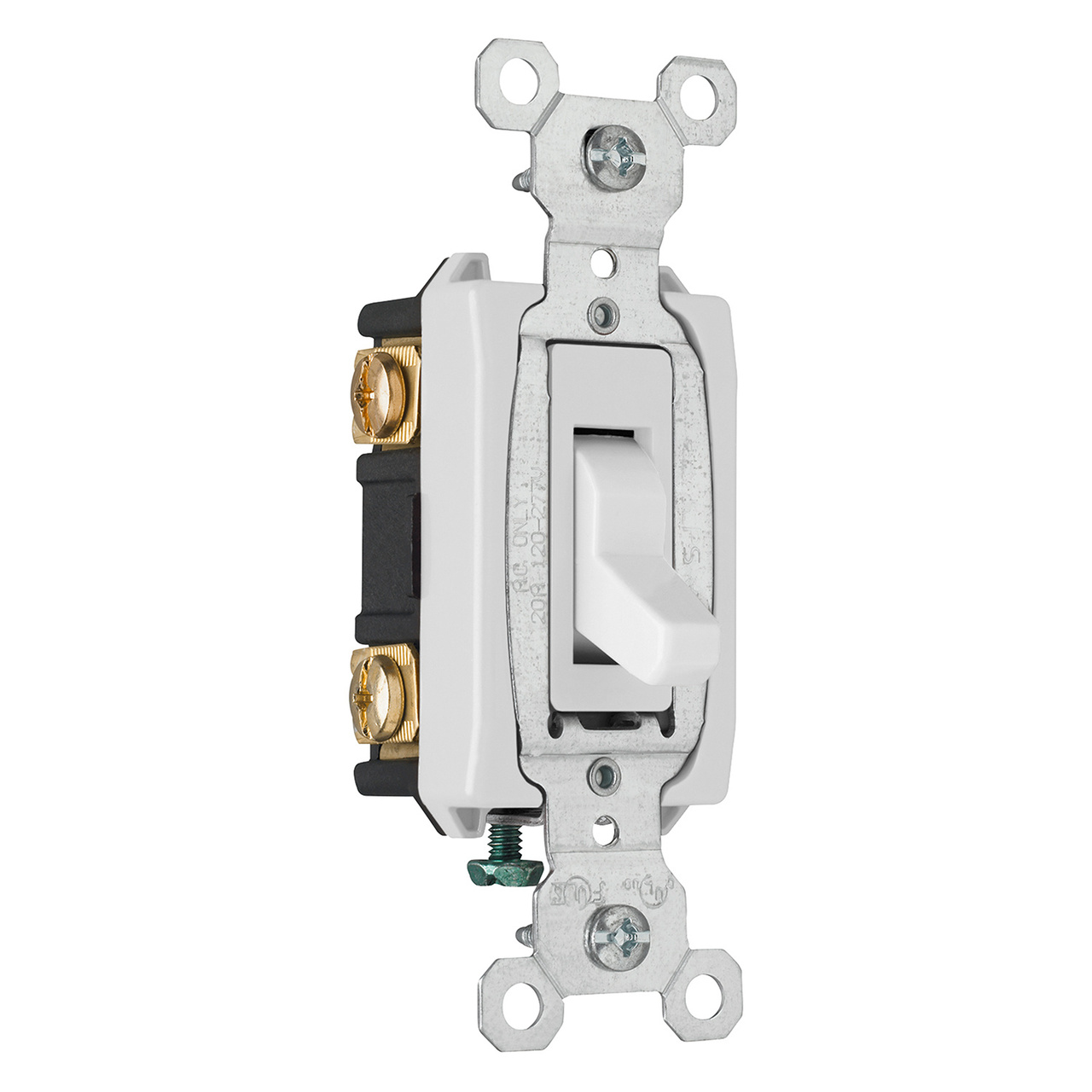

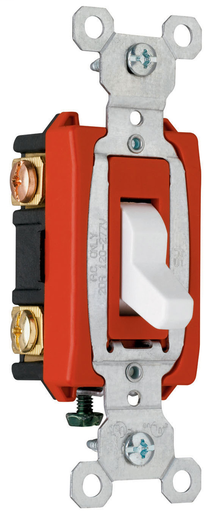

Product image for Pass & Seymour CSB20AC3-W Construction 3Way Switch, Back & Side Wire, 20Amp 120/277Volt, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour CSB20AC3-W Construction 3Way Switch, Back & Side Wire, 20Amp 120/277Volt, White

Manufacturer: Legrand Pass & Seymour | Catalog # CSB20AC3W | Codale Part # 3395572
$14.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Construction 3way Switch, Back & Side Wire, 20amp 120/277volt, White.

Technical Information

Action
4P
Actuator
Toggle
Amperage
20 Amp
Applications
Commercial,Residential
Connection Type
Side Wire Or External Screw-pressure Plate,Wired
Contact Rating
Oversized Silver Alloy Contacts
Duty Rating
Hard Use
Enclosure
WD-1,WD-6
Grade
Commercial/Residential
Indoor Outdoor
Indoor
Material
Thermoplastic
Number of Poles
2 Pole
Operating Temperature
40 degrees F
Size
3.3"
Type
3-Way
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007126297
Color
White
Finish
Matte
Product UPC
78500712629
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 to #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
