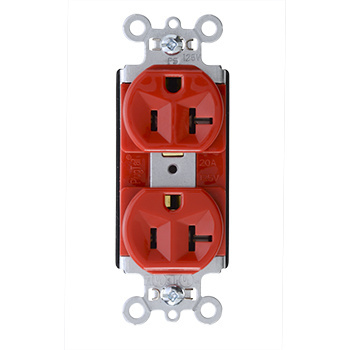

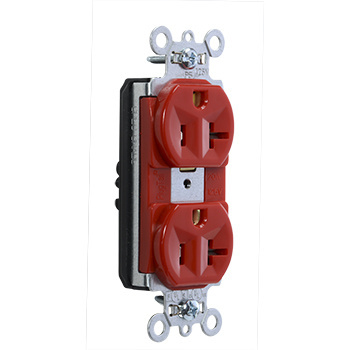

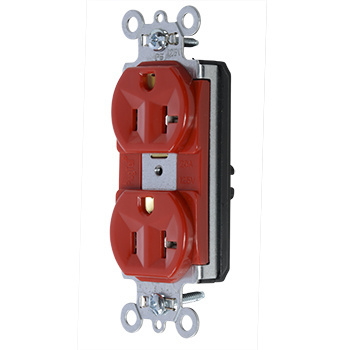

Pass & Seymour PT5362-RED PlugTail™ Spec Grade Duplex Receptacle, 20A 125V - Red

Manufacturer: Legrand Pass & Seymour | Catalog # PT5362RED | Codale Part # 3396530
$19.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PlugTail Spec Grade Duplex Receptacle 20amp 125volt BrownFor detailed PlugTail information, visit our PlugTail Headquarters.

Technical Information

Amperage
20 Amp
Applications
For Commercial
Capacity
Duplex
Conductor Size
12 AWG
Contact Material
0.036 in T Brass
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Federal Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.5 L x .625 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Spec Grade, Duplex
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007091717
Color
Red
Finish
Matte
Product Series
PlugTail
Product UPC
78500709171
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
2-3/4 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • Federal Spec Listed
  • cULus Listed
