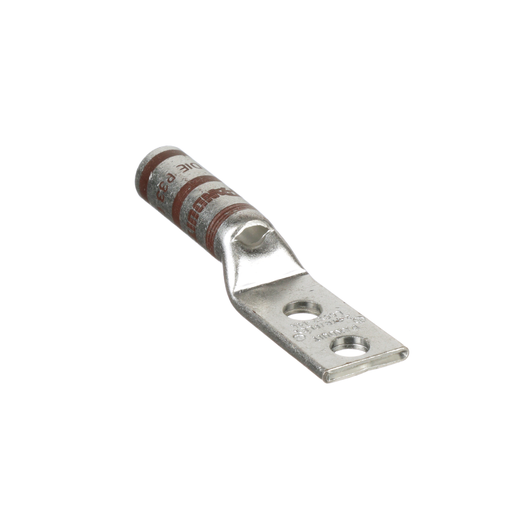

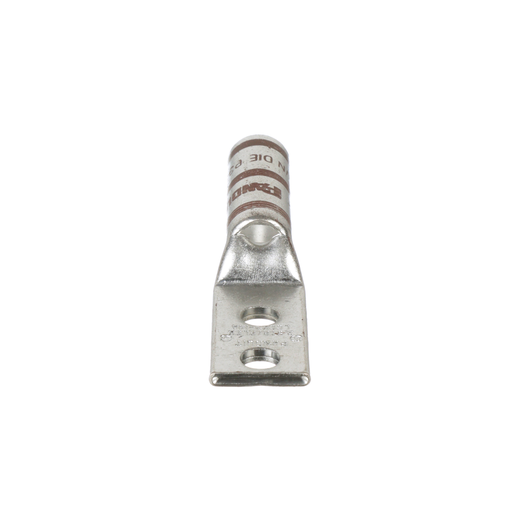

Panduit LCCX2-14A-E Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug

Manufacturer: Panduit | Catalog # LCCX2-14A-E | Codale Part # 3396849
$2,710.55/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCCX2-14A-E Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
1.36 in
Barrel Type
Long Barrel With Inspection Window
Cable Size
AWG
Color Coding
Brown
Material
Copper
Number of Holes
2 Hole
Size
#2 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
1/4 In.
Tongue Thickness
0.11 in
Tongue Type
Standard
Tongue Width
0.7 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983425532
Color
Brown
Product UPC
07498342553
Weight
0.0134 lb

Dimensions

Outer Diameter
0.47 in
Overall Length
2.89 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
