Hoffman SF0424413 IP54 4" Filter Fan 24V 9011

Manufacturer: nVent Hoffman | Catalog # SF0424413 | Codale Part # 3397455
$161.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Fresh air enclosure cooling filter fan. Click-fit design quickly installs into enclosure wall no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Standard foam-in-place gasket. Similar cut-out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
1 Amp
Applications
Industrial
Current
0.10 Amp
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Number of Phases
1 Phase
Size
4.13x4.13x2.17 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,Type 12,UL/cUL Recognized
Type
SF04 16 CFM (28 m3/hr.) Side-Mount Filter Fan
Voltage
24 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510199913
Finish
Black
Product UPC
78351019991
Weight
.73 lb

Dimensions

Depth
2.17 Inch
Height
4.13 Inch
Width
4.13 in
Features
  • Terminal wire connections
  • Simple snap-open grille for easy filter replacement
  • Standard foam-in-place gasket
  • Optional thermostat available to save energy and extend service life
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Enclosure side wall mounting
  • Similar cut-out sizes as other filter fan manufacturers
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
Applications
  • Package handling equipment
  • Food and beverage process controls
  • Industrial automation
  • Wind energy systems
  • Automotive assembly
Accessories
  • Rain shroud
  • Replacement filters
  • Thermostat
Finish
  • RAL 9011 black, UV-resistant plastic optional
  • RAL 7035 light-gray, UV-resistant plastic standard
Specifications

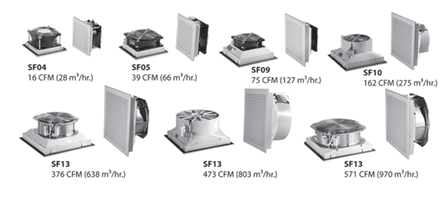

  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Service life hours from 40000 to 70000 hours
