HWDK HBL2820SW LKG WT S/SHRD RCPT,3

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2820SW | Codale Part # 3397889
$285.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

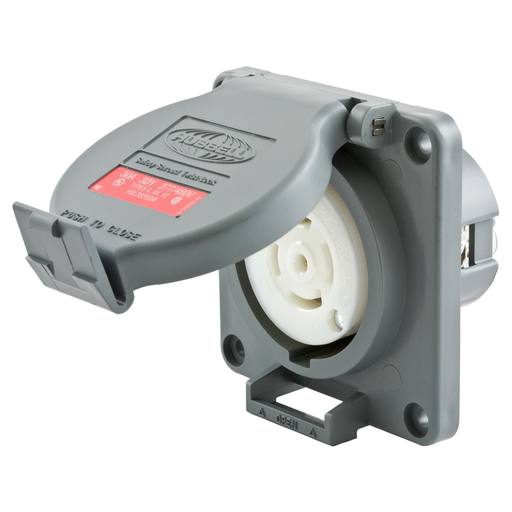

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, NEMA L22-30R, Screw Terminal, PBT housing and flange, Gray

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
16-8 AWG
Contact Material
Brass
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Flamability Class
V2 Or Better Per UL94/CSA 22.2 No.0.17
Material
Valox
NEMA
L22-30R
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
5,5
Operating Temperature
-40 degrees C

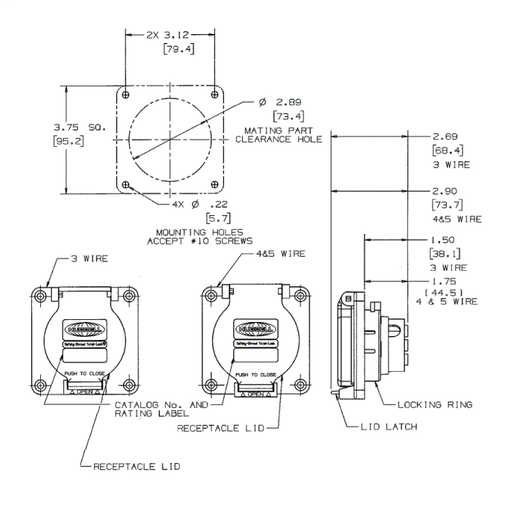

Size
3.75 in x 3.75 in x 2.9 in
Tc Connection
Screw Terminal
Type
Receptacle
Voltage
277/480 Volt
Wattage
14400 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585454962
Color
Gray,Gray
Environmental Conditions
Watertight
Product UPC
78358545496
Weight
0.2500 lb

Dimensions

Height
2.9 Inch
Length
3-3/4 Inch
Width
3.100 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • UL type 4X environmental seal while in use and when closed
  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Shrouded Watertight Construction
