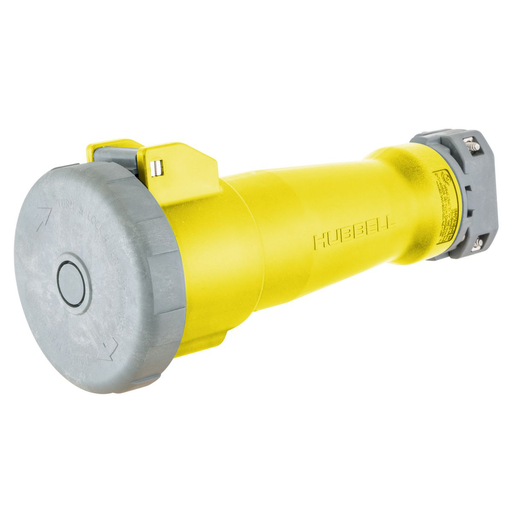

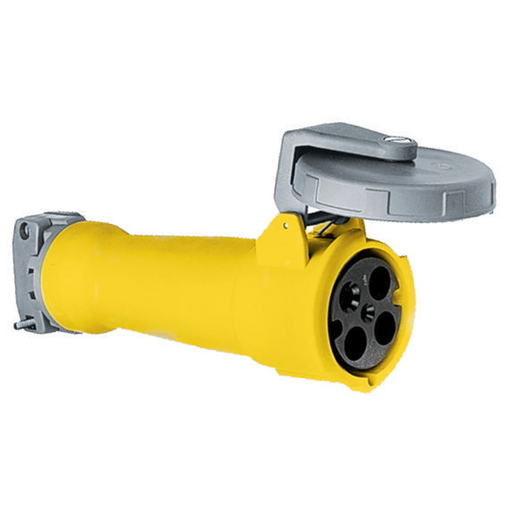

Hubbell M4100C12 Marine PSC, 3P4W, 100A 125/250V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M4100C12 | Codale Part # 3399180
$1,814.10/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 125/250V, 3-Pole 4- Wire Grounding, Terminal Screws, Yellow

Technical Information

Amperage
100 Amp
Applications
Marine Wiring Devices
Conductor Size
3-1/0 AWG
Current
100 Amp
Grade
Marine
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Conductors
4-Wire Grounding
Number of Poles
3 Pole
Number of Wires
4 Wire
Rating
100 A
Size
Standard
Standard
CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C/-25 to 75 degrees C
Type
Standard
Voltage
125/250 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585410029
Color
Orange
Environmental Conditions
Watertight
Product Series
Corrosion Resistant
Product UPC
78358541002
Weight
4.85 lb

Dimensions

Height
5-1/4 Inch
Length
14 Inch
Width
6.200 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Insulated non-metallic housing
  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Watertight
