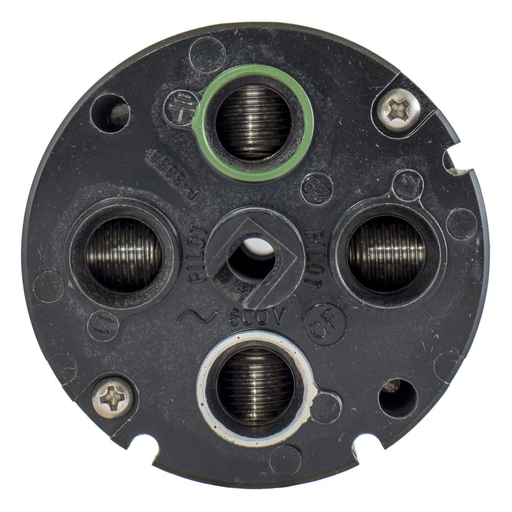

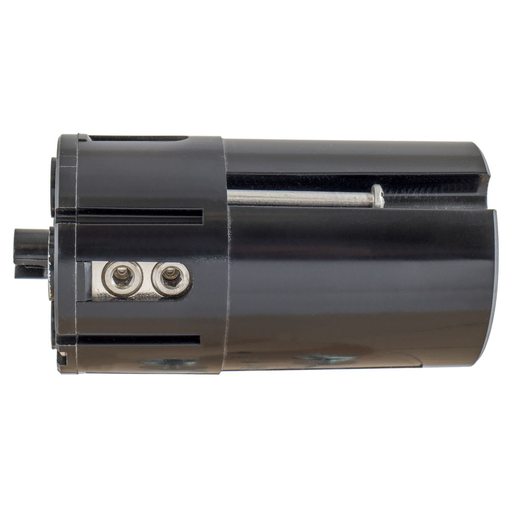

Hubbell M4100P12 Marine PSP, 3P4W, 100A 125/250V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M4100P12 | Codale Part # 3399237
$1,645.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Plug, 100A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Yellow

Technical Information

Amperage
100 Amp
Applications
Marine Wiring Devices
Conductor Size
3-1/0 AWG
Cord Type
Portable
Current
100 Amp
Material
Composite
Mounting Type
Cord
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Rating
100 A
Size
Standard Sized
Standard
CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Terminal Screws
Type
Male, Standard Sized
Voltage
125/250 Volt
Wattage
25000 Watt
Wire Count
4
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585410043
Color
Yellow
Environmental Conditions
Watertight
Product Series
Corrosion Resistant
Product UPC
78358541004
Weight
3.9 lb

Dimensions

Height
5-1/4 Inch
Length
14 Inch
Width
6.200 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin
  • Watertight
