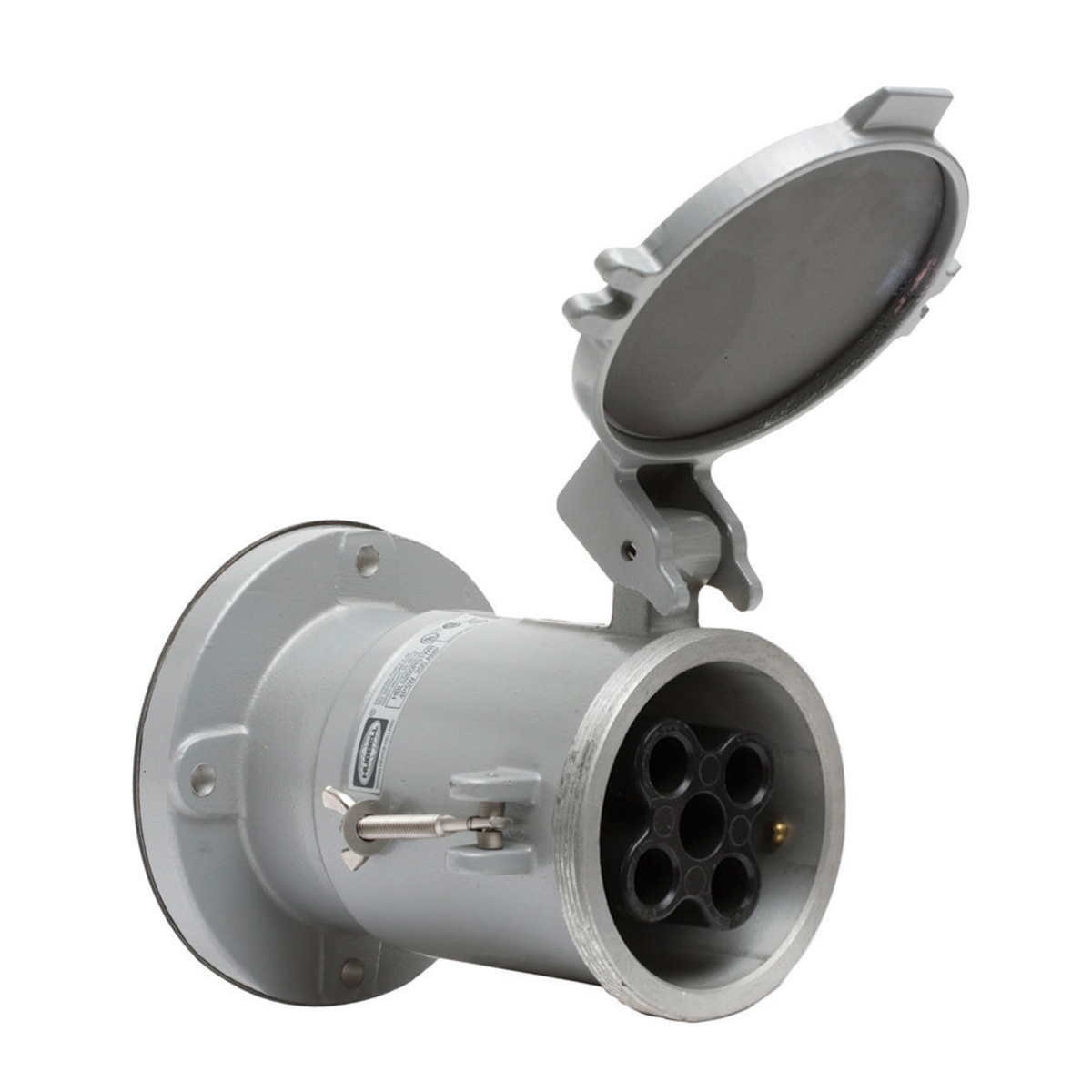

Product image for Hubbell HBL4200RS2W 200 Amp 600 VAC 250 VDC 3-Pole 4-Wire Style II Watertight IEC Pin and Sleeve Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL4200RS2W 200 Amp 600 VAC 250 VDC 3-Pole 4-Wire Style II Watertight IEC Pin and Sleeve Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4200RS2W | Codale Part # 339964
$2,178.03/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 200A 600V AC, 3- Pole 4-Wire Grounding Style 2, Terminal Screws Gray and Black

Technical Information

Amperage
200 Amp
Applications
High Ampacity Connections
Conductor Size
2-4/0 AWG
Current
200 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1,3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Standard Service,Style 2 Grounding
Tc Connection
Pressure Screw Terminals
Type
Single Flanged-Reversed
Voltage
250 Volt
Wattage
120000 Watt
Wire Count
4
Wire Size
2-0000 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585011509
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358501150
Weight
10.4 lb

Dimensions

Height
7.3 Inch
Length
9.9 Inch
Width
9.4 in

Certifications and Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
