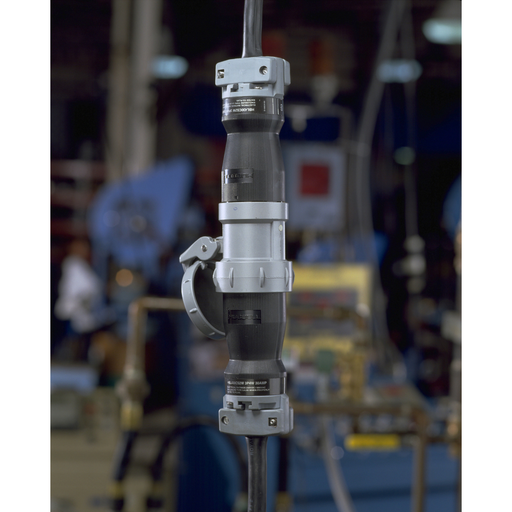

Image thumbnail 2

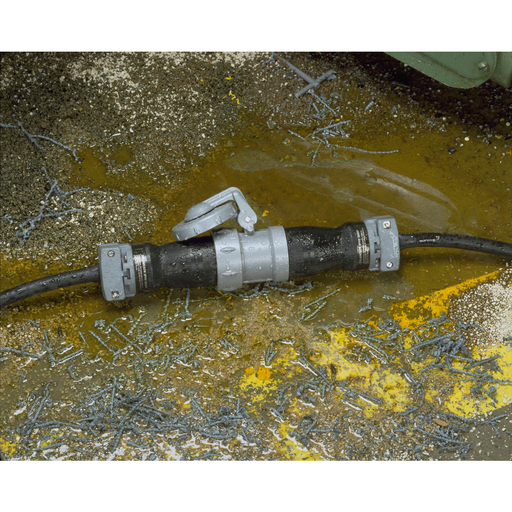

Image thumbnail 3

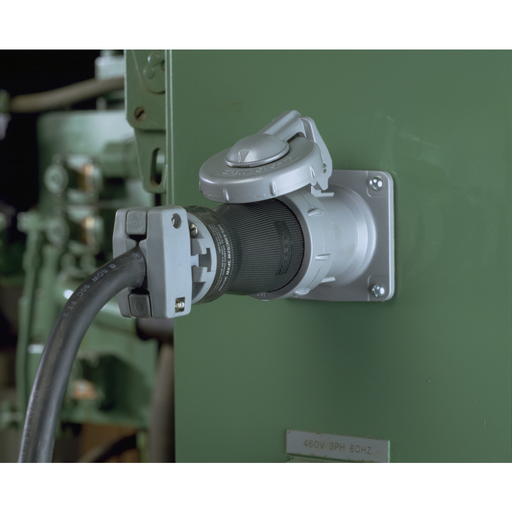

Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Hubbell HBL5200CS1W PS, INS, CONN, 4P5W, 200A 600V, S1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5200CS1W | Codale Part # 339968
$2,787.44/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 200A 600V AC, 4-Pole 5-Wire Grounding, TerminalScrews, Gray and Black, Watertight

Technical Information

Amperage
200 Amp
Applications
High Ampacity Connections
Conductor Size
1 AWG-250 kcmil
Current
200 Amp
Material
Aluminum
Mounting Type
Cord
Number of Conductors
5
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Standard Service,Style 1 Grounding
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C
Type
Watertight, Standard, Straight
Voltage
250 Volt
Wire Count
5

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585011585
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358501158
Weight
14.4 lb

Dimensions

Height
6-1/2 Inch
Length
16.1 Inch
Width
8.3 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
