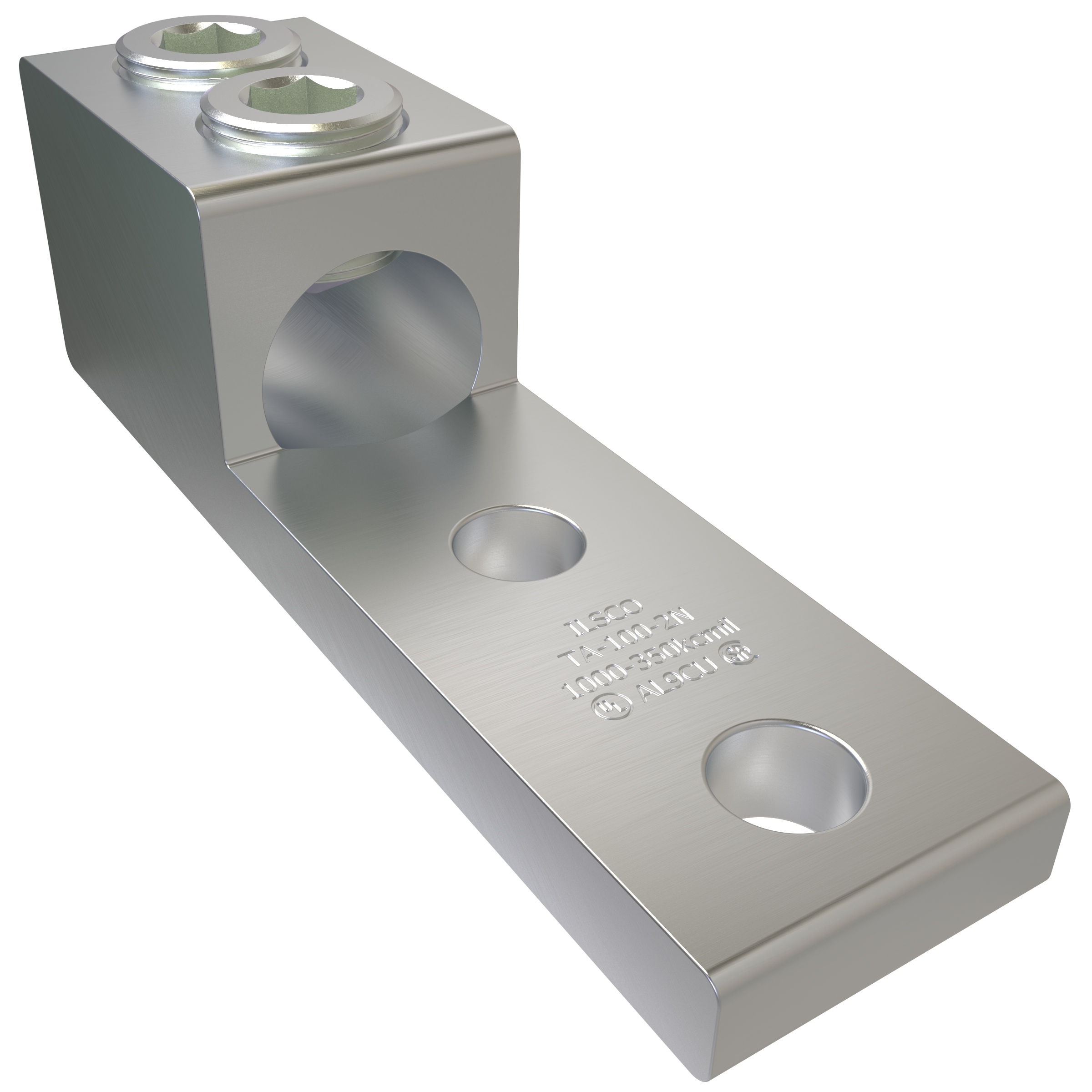

Image thumbnail 2
Email

Ilsco TA-1000-2N Aluminum Mechanical Lug, Dual Rated, Conductor Range 1000-350, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, 2 Screws, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # TA-1000-2N | Codale Part # 3401741
$64.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1000 kcmil - 350 kcmil, 1 conductors, 1 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, One Conductor
Bolt Size
1/2 in
Conductor Material
Aluminum,Copper
Conductor Size
350-1000 kcmil
Conductor Type
Aluminum/Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Conductors
1
Number of Holes
2 Hole
Standard
CSA File Number: LR-29601,UL Specifications: UL 486A-B,UL File Number: E6207
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TA:1 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669894868
Color
Silver
Finish
Tin Plated
Product UPC
78366989486
Used With
Circuits Rated 35 kV or Less
Weight
0.997 lb

Dimensions

Height
1.813 Inch
Length
5.97 Inch
Width
1.625 in
