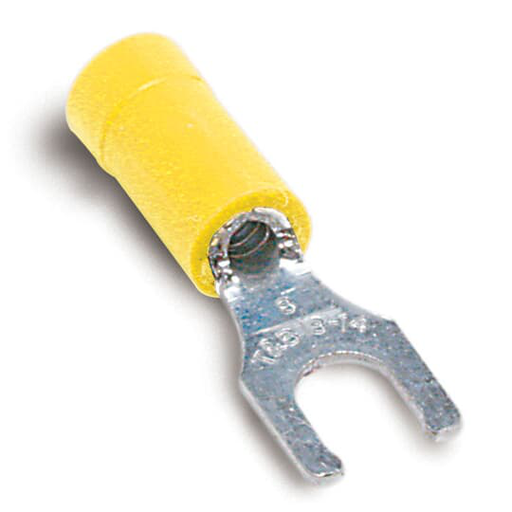

Thomas & Betts 10RC-14FL Vinyl-Insulated Locking Fork Terminal - #12-10, 1/4"bolt

Manufacturer: ABB Thomas & Betts | Catalog # 10RC-14FL | Codale Part # 3402476
$199.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

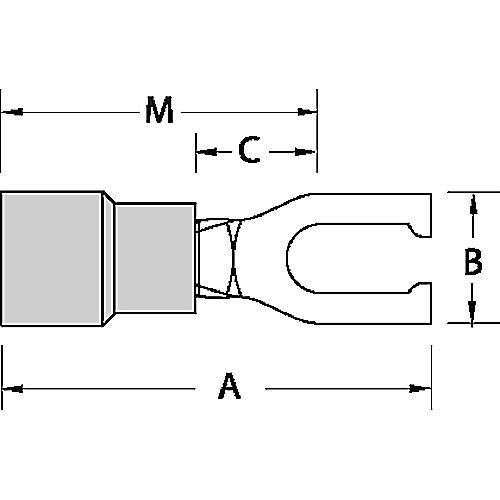

Vinyl-Insulated Locking Fork Terminal, Length 1.09 Inches, Width .49 Inches, Maximum Insulation .220, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210807287
Color
Yellow
Finish
Tin Plated
Product UPC
78621080728
Used With
Round Conductors
Weight
0.0282 lb

Dimensions

Height
9 Inch
Thickness
.04 in
Width
9-1/4 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
