Hubbell DRUB15H 15 Amp 125 Volt NEMA 5-15R Gray Din Rail Utility Box Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DRUB15H | Codale Part # 3402505
$106.90/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
DIN Rail Utility Box, Complete Unit- Duplex Receptacle, Horizontal, 1) 15A 125V, 2-Pole 3-Wire Grounding, 5- 15R, Gray.

Technical Information

Amperage
15 Amp
Applications
Unit Pre-Wired with Duplex Receptacle
Base Material
PVC
Cable Entry
Terminals
Conductor Size
14-12 AWG
Current
15 Amp
Horsepower
0.5 hp
Material
Composite
Mounting Type
Horizontal, DIN Rail
NEMA
5-15R
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized Product
Standard
UL
Type
Complete Unit
Voltage
125 Volt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
DIN Rail Utility Box

General Product Info

12-Digit UPC
783585108025
Color
Gray
Construction
Molded And Fabricated
Product UPC
78358510802
Weight
1 lb

Dimensions

Height
2.54 Inch
Length
5.62 Inch
Width
3.31 in

Certifications and Compliance

Country of Origin
USA
Features

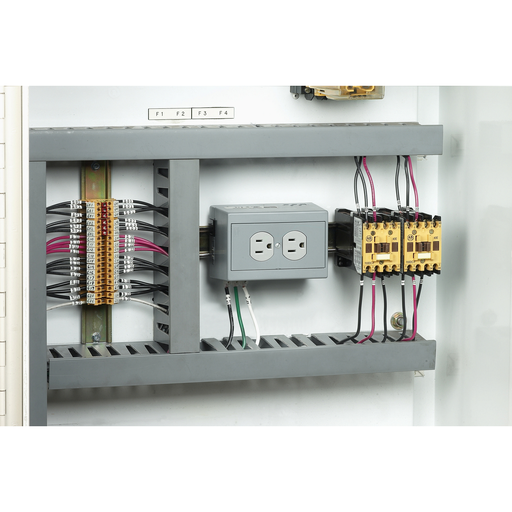

  • It provide utility power to any control cabinet
  • Optional auxiliary contacts for feed through capability
  • Pre-wired \"kits\" are available for end-user customization
  • 15A 125V, 2-Pole 3-Wire Grounding
