Hubbell HBL8210R 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Red Single Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8210R | Codale Part # 3403174
$48.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty, Hospitals
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Hospital
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585016245
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358501624
Weight
0.25 lb

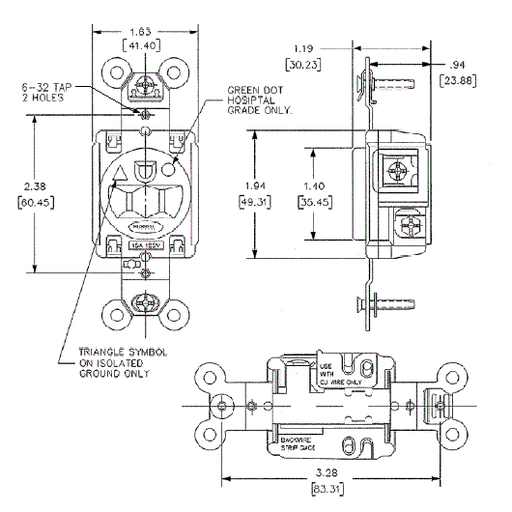

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • One-piece nickel-plated brass integral ground strap
  • Patented bypass contact design
  • Self Grounding
