HWDK HBL2821SW LKG WT S/SHRD PLG,30

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2821SW | Codale Part # 3403811
$556.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

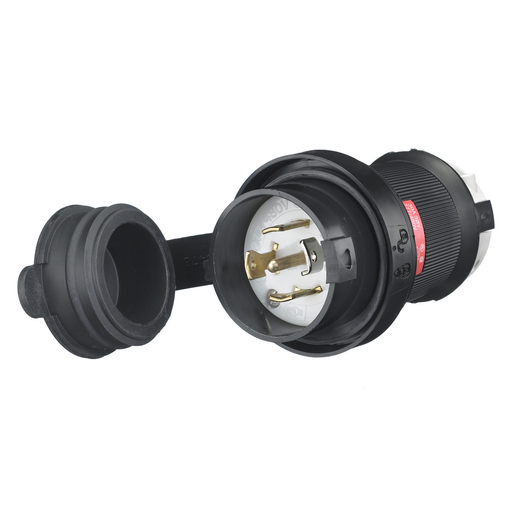

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, NEMA L22-30P, Screw Terminal, Black PBT housing, White PBT clamps.

Technical Information

Amperage
30 Amp
Applications
For Conduit Bending
Conductor Size
16-8 AWG
Cord Range
0.35 in-1.15 in (9-29)~~
Cord Type
Portable
Current
30 Amp
Flamability Class
V0 Per UL94 Or CSA 22.2 No.0.17
Material
Composite
NEMA
L22-30P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-29 degrees C
Screw Material
#10-32 Brass
Size
4.5 in x 2.94 in x 2.94 in
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Spade, 2 Terminals
Type
Standard Sized
Voltage
277/480 Volt
Wattage
14400 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585454979
Color
Black,White
Environmental Conditions
Watertight
Product UPC
78358545497
Weight
0.2500 lb

Dimensions

Height
2.94 Inch
Length
4-1/2 Inch
Width
2.94 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • Impact resistant shroud protects blades against bending and breaking.
  • Reduces exposure to arcing when connecting or disconnecting under load.
  • Superior cord grip design protects terminations from excess strain.
  • Shrouded Watertight Construction
