Product image for Hubbell Wiring Devices HBL1224RKL 20 Amp 120/277 VAC 4-Way Chrome Locking Toggle Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell Wiring Devices HBL1224RKL 20 Amp 120/277 VAC 4-Way Chrome Locking Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1224RKL | Codale Part # 3404598
$254.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Barrel Key Locking Switch, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Chrome

Technical Information

Action
DPDT
Actuator
Cylindrical Key
Amperage
20 Amp
Applications
Four Way
Conductor Size
14-10 AWG
Contact Configuration
2-Position
Contact Rating
Full Rated
Current
20 Amp
Enclosure
None
Grade
Industrial
Lock Type
Cylindrical
Material
Thermoset
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
Standard Product Size
Style
Four Way
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 C
Type
General Purpose, Standard, 4-Way, 2-Position, Extra Heavy-Duty
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585432137
Color
Silver
Product Series
Extra Heavy Duty
Product UPC
78358543213
Weight
0.2 lb

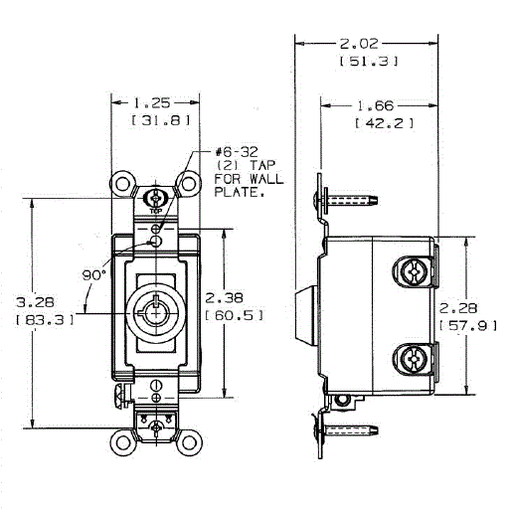

Dimensions

Height
2.02 Inch
Length
4.06 Inch
Width
1.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring
Compare
