Hoffman SF0916414 IP54 9" Filter Fan 115V 7035

Manufacturer: nVent Hoffman | Catalog # SF0916414 | Codale Part # 3404659
$227.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cooling fan, Side mount, RAL 7035 light grey, 75 CFM (127 m/hr.), UV-resistant plastic standard, Click-fit design quickly installs into enclosure wall; no tools or screws required, Simple snap-open grille for easy filter replacement, Enclosure side wall mounting, Standard foam-in-place gasket, Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
0.23 Amp
Applications
Industrial
Current
.23 Amp
Frequency
50/60 Hz
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Number of Phases
1 Phase
Size
8.03x8.03x3.54 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type
SF09 75 CFM (127 m3/hr.) Side-Mount Filter Fan
Voltage
115 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510200152
Finish
Gray
Product UPC
78351020015
Weight
1.74 lb

Dimensions

Depth
3.54 Inch
Height
8.02 Inch
Width
8.02 in
Features
  • Simple snap-open grille for easy filter replacement
  • Terminal wire connections
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Similar cut-out sizes as other filter fan manufacturers
  • Enclosure side wall mounting
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Standard foam-in-place gasket
  • Optional thermostat available to save energy and extend service life
Applications
  • Wind energy systems
  • Industrial automation
  • Automotive assembly
  • Food and beverage process controls
  • Package handling equipment
Accessories
  • Replacement filters
  • Thermostat
  • Rain shroud
Finish
  • RAL 9011 black, UV-resistant plastic optional
  • RAL 7035 light-gray, UV-resistant plastic standard
Specifications

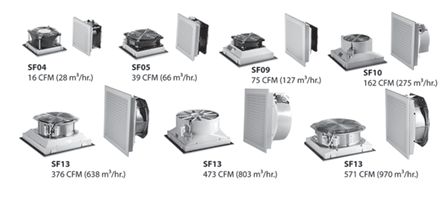

  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Service life hours from 40000 to 70000 hours
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
