Caddy TEB23 Universal Electrical Box Bracket, 2-1/2", 3-5/8" Wall Depth

Manufacturer: Caddy Fasteners | Catalog # TEB23 | Codale Part # 3405149
$908.64/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

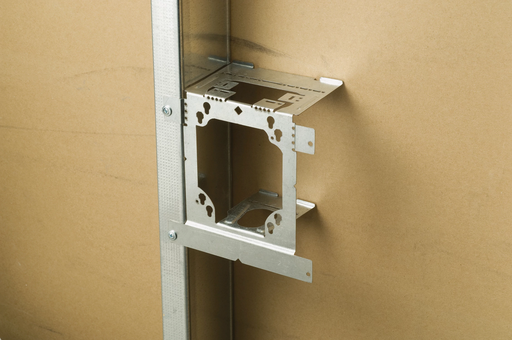

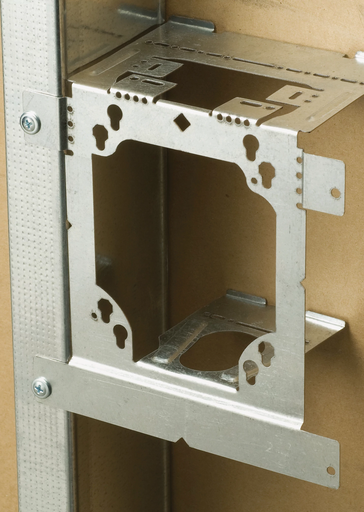

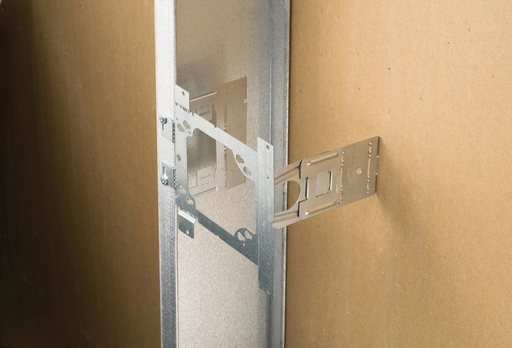

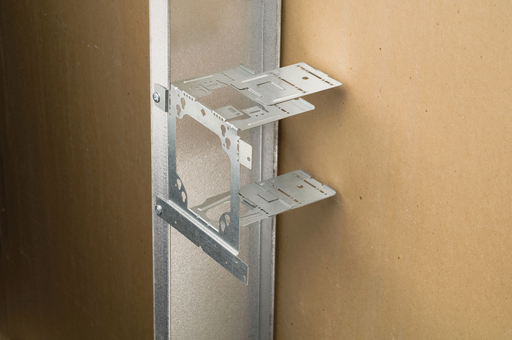

Universal Electrical Box Bracket, 2 1/2", 3 5/8" Wall Depth

Technical Information

Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Material
Steel
Standard
CULus®
Type
Stud Mounted Box Brackets

Manufacturer Information

Brand
Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856638322
Finish
Pregalvanized
Product UPC
78285663832
Weight
0.14 kg
Features
  • Can be pre-fabricated prior to attaching box to the bracket
  • Box locking tabs securely lock electrical boxes in place to prevent disassembly during shipment
  • Mounts electrical boxes
  • Mounts plaster rings for low voltage applications
  • Easily identify mounting orientation of electrical boxes
  • Feet on the far-side supports help prevent damage to the drywall
  • Can be mounted to stud on all four sides
  • Designed with two far-side supports for added stability
  • Allows any box size to be used
Certifications
  • cUL CAN/CSA-C22.2 No. 18.1-04
  • UL ANSI/UL 514A
