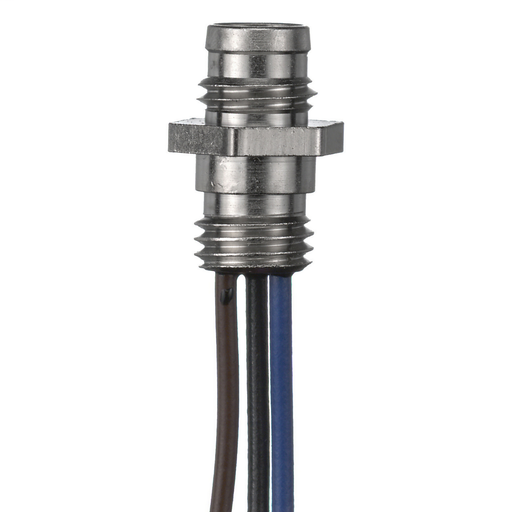

HWDK NBCS3D N-QCK, COMB, MALE RCPT,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # NBCS3D | Codale Part # 3406235
$44.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Nano-Quick Control Connectors, Combination Receptacle, 3P, 0.25M

Technical Information

Amperage
4 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Size
24 AWG
Conductor Type
Copper
Contact Material
Beryllium Copper,Brass
Current
4 Amp
Insulation Material
Nylon 6/6
Material
Composite
Number of Conductors
3
Number of Poles
3 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E1,UL 2238,UL50E
Type
Male Receptacle
Voltage
125 Volt
Wattage
500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Nano-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585956244
Color
Metallic
Construction
Nylon Shell
Product UPC
78358595624
Weight
0.0500 lb

Dimensions

Height
9 Inch
Length
2 m
Width
0.500 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Performance
  • Electrical - Amperage - 4A
  • Electrical - Contact Resistance - Less than or Equal to 5 Milliohm
  • Electrical - Isolation Resistance - Greater than or Equal to 1000 Megaohm
  • Electrical - Voltage Rating - 125V AC/75V DC
  • Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001
  • Environmental - Ingress Protection - IP66 Suitability
  • Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13
  • Environmental - Operating Temperature - PVC Cable: -20° to 105° C
  • Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD1344, Method 2005
Features
  • Black overmold and cable
  • O-Rings for moisture protection
  • Standard Product
  • Insulgrip connector body design
  • Nickel contact plating for superior conductivity
Industry Standard(s)
  • CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07
  • UL 2238 and UL50E, File No. E1
