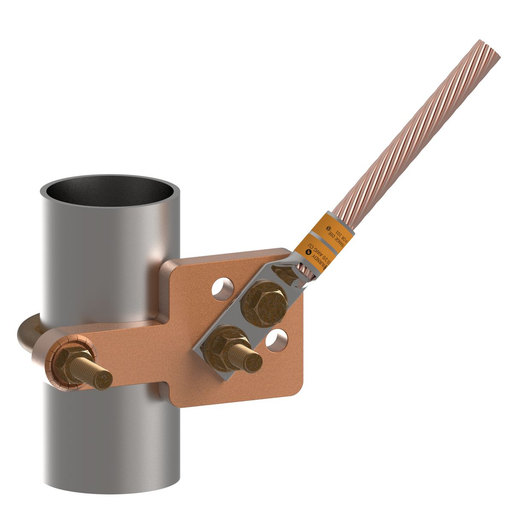

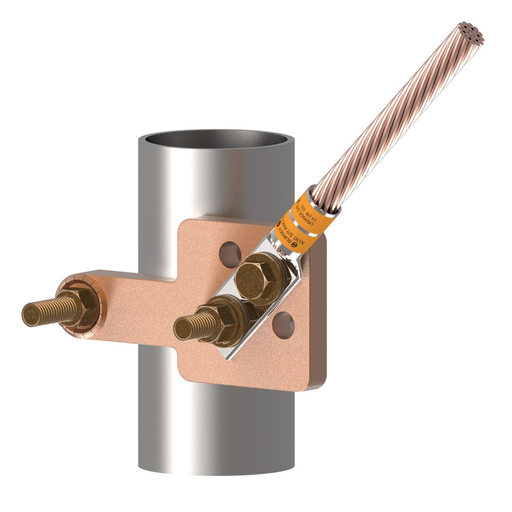

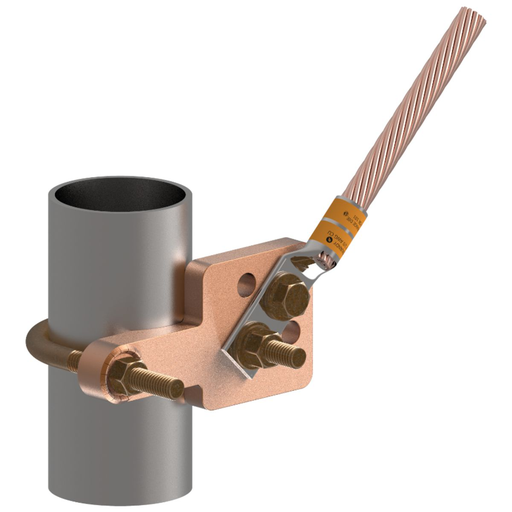

Burndy GAR3904TC Water Pipe Ground Connector, 2-1/2"- 3-1/2" Rod, Large, smooth connector contact area between pipe and ground clamp

Manufacturer: Hubbell-Burndy | Catalog # GAR3904TC | Codale Part # 3407166
$276.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Water pipe Ground Connector, 2-1/2 "- 3-1/2"Rod, Large, smooth connector contact area between pipe and ground clamp.

Technical Information

Applications
For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes
Bolt Size
3/8-16
Material
Copper
Plated?
No
Plating Type
Unplated
Type
Rod or Tube Clamp with Mounting Pad

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810001578
Product UPC
78181000157
Weight
1.3400 lb

Dimensions

Height
6-1/2 Inch
Length
2-1/2 Inch
Overall Length
2.50 in
Width
2.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • Large, smooth connector contact area between pipe and ground clamp to maximize contact area between connector and pipe
  • Pre-drilled pad for 2-3/8\" bolts on 1\" centers to allow for direct mounting of 2-hole compression terminals up to 750 kcmil to pipe
  • One-wrench installation
  • UL467 Listed for the US and Canadian Markets
