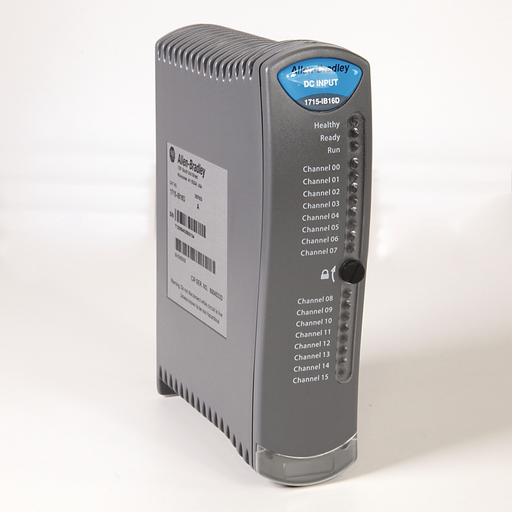

Allen Bradley 1715-IB16D 1715 16 Point Digital Input Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 1715-IB16D | Codale Part # 3407384
$3,543.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
1715 16 Point Digital Input Module

Technical Information

Applications
For Redundant
Display Type
Module Health And Status
Enclosure
None (open style)
Input Voltage
18-32 V
Mounting Type
DIN Rail
Number of Channels
16
Operating Temperature
-13 To 158 degrees F
Power Supply
260ma @24VDC
Standard
C-TICK,CE,GOST,KC
Type
Digital
Voltage
24 VDC at 260 mA, 18-32 VDC Input

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlLogix®

General Product Info

12-Digit UPC
885630010724
Product UPC
88563001072
Weight
1.2300 lb
Features
  • Offer 420 mA input
  • Offer 24V DC output
  • Offer 24V DC input
  • Require no additional hardware or programming software
  • Provide secure communication between modules for fault tolerant operation
  • Allow dual redundant field power feed capabilities without requiring external diodes
  • Include two-terminal current regulating device
  • Support short circuit and open circuit line fault detection
  • Provide voltage and current monitoring on each channel with reverse current protection
  • Built-in diagnostic testing
  • Provide duplex series output switches with overload protection for each channel
  • Provide input voltage data for line monitoring and field fault detection
  • Suitable for simplex and duplex connections and for fault tolerant applications
  • 16-channel connection capability
  • Support as many as eight field devices
  • Offer flexible, modular construction for user-configurable I/O applications
  • Offer fail-safe design and operation
  • Offer 420 mA output
  • Provide I/O redundancy for system requiring high availability
  • Eight isolated output channels per module
  • Allow module removal and replacement online with no interruption of the signal inputs
