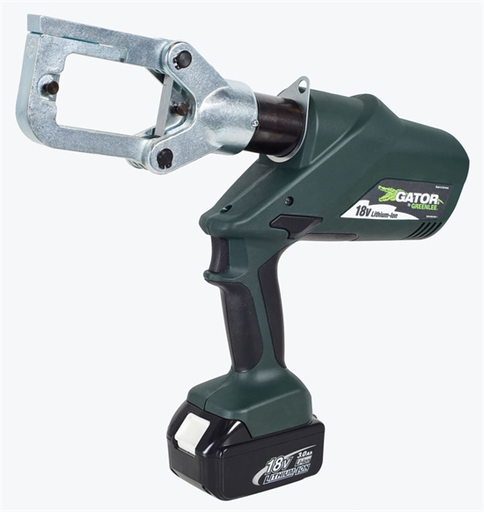

GREENLEE ECCXL11 CRIMP TOOL GATOR PRO-LI BAT 120VCHRG

Manufacturer: Greenlee | Catalog # ECCXL11 | Codale Part # 3407735
$11,667.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
6-Ton Battery-Powered CCX tool, w/120 V charger

Technical Information

Battery Type
18V Lithium-Ion
Crimping Force
12000 lb
Standard
C/US UL Listed
Type
Battery Powered

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310520405
Product UPC
78331052040
Weight
14.000 lb

Dimensions

Overall Length
16-1/2 in
Description
  • One Trigger Controls All Tool Functions
  • U.S. Patent #6,206,663, #6,532,790,
  • Use Optional CCX Blades And Adapters
  • LED Work Light Illuminates Dark Work Areas
  • Tools Automatically Retract When The Crimping Or Cutting Cycle Is Complete
  • Available With 120V, 12V or 230V Battery Charger Or With 120V or 230V Corded Adapter In Place Of Batteries And Charger
  • Forward Handle Position Improves Tool Balance
  • When used with Greenlee KC22 and KA22 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6-ton tools. They can drive knockout punches up through 2\" diameters:
  • Crimping Head Rotates 350°
  • LED Light Provides The Operator With The Battery Charge And Tool Maintenance Status
  • Smart Chargers Control The Charging Current, Charging Voltage And Battery Temperature To Maximize Battery Life
  • Greenlee Battery-Powered Crimping Tools Now Use Bio-Degradable Oil
  • State Of The Art 18V Lithium Ion (Li-ion) Battery Provides 70% More Cycles Per Charge And Faster Cycle Times
  • Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp And Provides The Operator A Visual And Audible Alert If The Force Is Below Specifications
  • Two-Stage Hydraulic System Provides Fast Advance And Power Speeds, Saving Time
  • Overmolded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
  • Retraction Stop Repeat (RSR) Allows The Operator To Partially Retract The Ram And Then The Tool Repeats The Retraction For Subsequent Crimps
