Burndy YGIBS284002N Copper Compression Connector, Cable to Steel, 2 AWG - 4/0 AWG, Angled Flange, 0338" - 0400" Thickness, 2 holes, 1/2" Stud

Manufacturer: Hubbell-Burndy | Catalog # YGIBS284002N | Codale Part # 3408168
$413.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Compression Connector, Cable to Steel, 2 AWG - 4/0 AWG, Angled Flange, 0.338" - 0.400" Thickness, 2 holes, 1/2" Stud.

Technical Information

Applications
For Direct Burial Cables
Bolt Size
1/2-13
Conductor Size
1 AWG
Conductor Type
CU C Str-Size
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Type
Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810034965
Product UPC
78181003496
Weight
2.0000 lb

Dimensions

Height
3 Inch
Length
3 Inch
Overall Length
76 mm
Width
1.13 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features

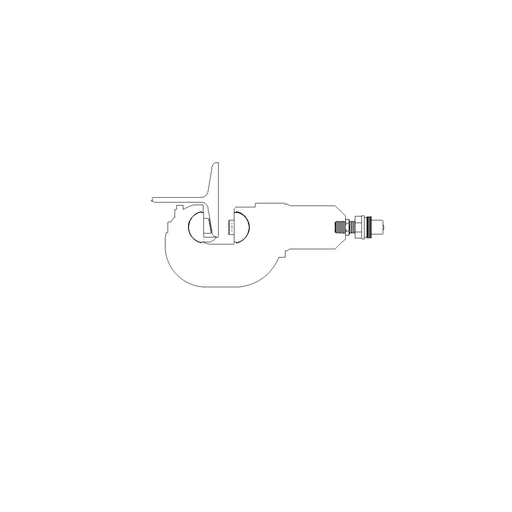

  • Irreversible compression ground connector allowing attachment to a structural steel standard (Angled) or wide flange (Parallel) beam
  • Made of high conductivity wrought copper and prefilled with PENETROX™ E compound and strip sealed
