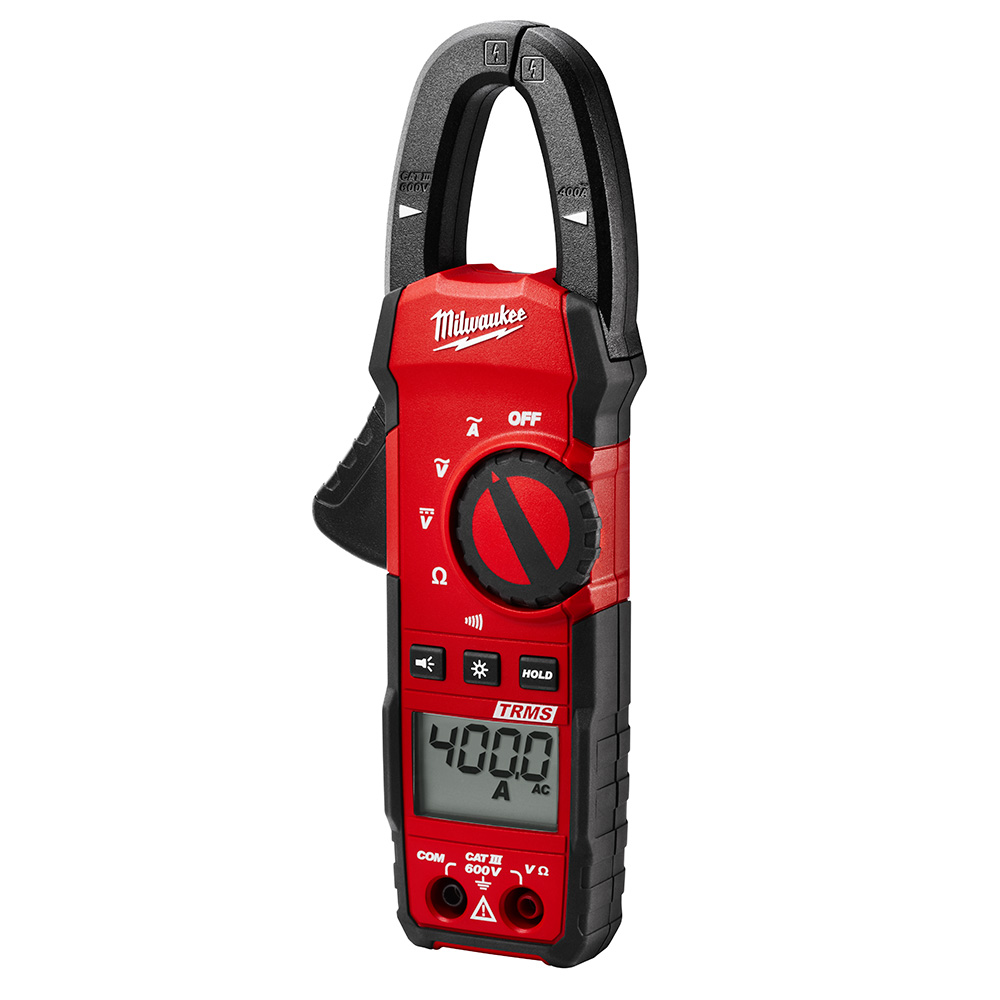

Milwaukee 2235-20 400 Amp Clamp Meter

Manufacturer: Milwaukee Tool | Catalog # 2235-20 | Codale Part # 3408232
$99.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet MDM Safety Data Sheet
Heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional electrician; includes all the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2235-20 clamp meter features: jaw size of 1.0 in. measuring up to 350 MCM cable; rated cat III 600 V; current measurement to 400 A AC; voltage measurement to 600 V AC/DC; LED work light to improve task lighting; resistance measurement to 4000 ohms; test for continuity; black on white display and backlight for easier reading; rugged over-molding for increased durability and user grip; includes one (1) electrical test lead set, two (2) AAA batteries, and manual; covered by 5 year warranty.

Technical Information

Applications
For Measuring Conductivity, Inductance, Temperature, True RMS
Battery Type
Alkaline (AAA)
Impedance
Yes
Material
Polycarbonate,Rubber
Resistance
400 ohm
Type
Automatically

Manufacturer Information

Brand
Milwaukee Tool

General Product Info

12-Digit UPC
045242236930
Color
Black,Red
Product UPC
04524223693
Weight
1.5000 lb

Dimensions

Depth
10-1/2 Inch
Length
7 Inch
Warranty Length
5 Years

Certifications & Compliance

Prop 65 Warning
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

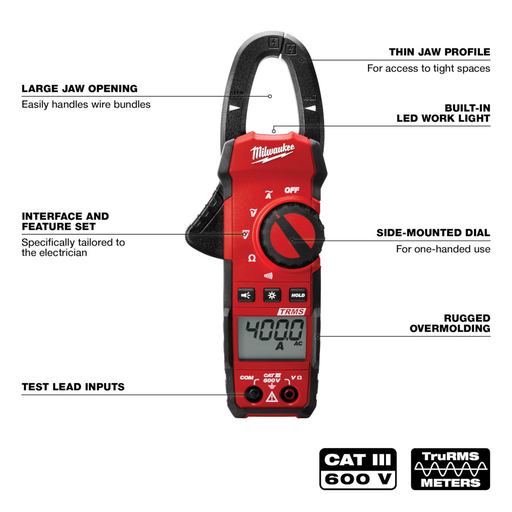

Features
  • Measures up to 400 A AC, large 1.0 in. jaw opening
  • Thin jaw profile for easier wire measurement in panels or in bundles
  • Wide voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-in LED work light
  • Cat III 600 V for increased safety
  • Black on white display with backlight for easier reading
  • Rugged over-molding increases durability and user grip
Prop 65
  • WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
