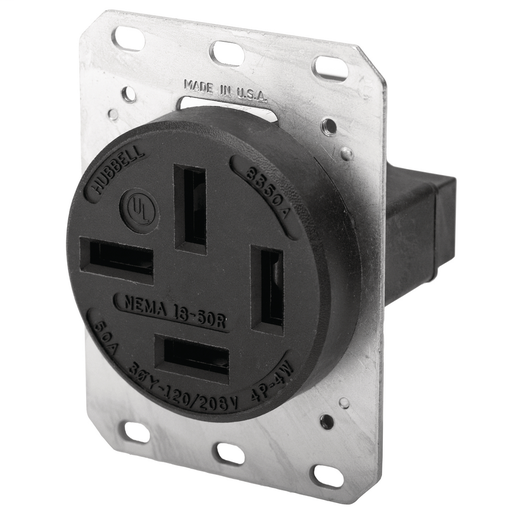

Product image for Hubbell HBL8350A 50 Amp 120/208 VAC 4-Pole 4-Wire NEMA 18-50R Black Single Straight Blade Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL8350A 50 Amp 120/208 VAC 4-Pole 4-Wire NEMA 18-50R Black Single Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8350A | Codale Part # 3410300
$184.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Receptacles, 4-Pole 4-Wire non Grounding receptacles and plugs, 50A 3 Phase,120/208 V, 18-50R, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Heavy Duty
Conductor Size
10-4 AWG
Connection Type
Back and Side Wired
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw
NEMA
18-50R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E2186,NEMA® WD-6,UL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
2,000 Volt
Wattage
10400 Watt
Wire Count
4
Wire Size
12-6

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015484
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501548
Weight
0.6300 lb
Features
  • Catalog number, ratings and certifications molded in face
  • Sequenced contacts assure protection
  • One piece design power and ground contacts
Listings
  • UL Listed File E2186
  • CSA Certified
  • NEMA® WD-6 Compliant
