Hubbell HBL7506C 15 Amp 125 Volt 2-Pole 2-Wire NEMA L1-15R Black and White Locking Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7506C | Codale Part # 3410403
$70.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 15A 125V , 2-Pole 2-Wire Non-Grounding, NEMA L1-15R, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Connection Type
Pressure Screw Terminal
Current
15 Amp
Material
Composite
NEMA
L6-15R
Number of Conductors
2-Wire Non-Grounding
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No. 42,Fed. Spec W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without impact, -25 degrees C with Impact
Type
Insulated, Standard, 2-Pole
Voltage
125 Volt
Wire Count
2
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585177908
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358517790
Weight
0.15 lb

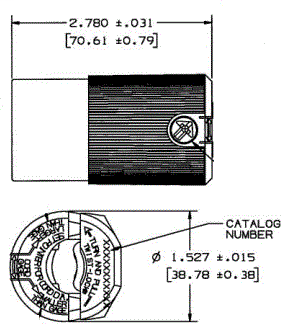

Dimensions

Height
2.78 Inch
Length
1.53 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides secure, impact and chemical resistant grip
  • Superior cord grip design protects terminations from excess strain
  • Integral VARI-SIZE insert accomodates a wide range of cord diameters
  • Standard Product
