HUBWIR CR15ITRP1 CR15ITR W/ 8 IN. SOLID LEADS

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CR15ITRP1 | Codale Part # 3410825
$12.19/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

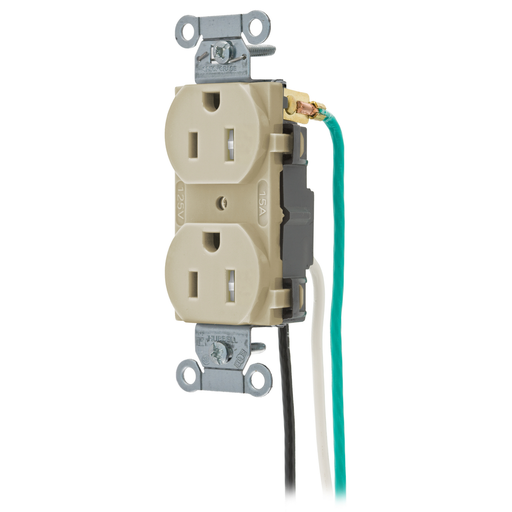

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack, Pre-Wired 8" Solid Leads.

Technical Information

Amperage
15 Amp
Base Material
Nylon,Nylon
Conductor Size
12 AWG
Current
15 Amp
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Commercial
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
C22.2,CSA,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
Tamper Resistant?
Yes
Type
Pre-Wired
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585147567
Color
Ivory
Product Series
Commercial Specification Grade
Product UPC
78358514756
Weight
0 lb

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
0.83 in

Certifications and Compliance

Country of Origin
China
Features
  • Fully insulated design with 8-inch solid wire leads
  • Tamper-resistant shutter complies with national electrical code requirements
  • Smooth face
  • Triple wipe contacts
  • Tamper Resistant
