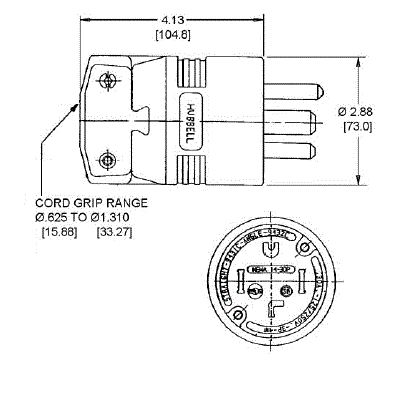

Hubbell HBL8331C Plug, 4P4W, 30A 120/208V, 18-30P, B/W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8331C | Codale Part # 3411302
$271.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Receptacles, 4-Pole 4-Wire non Grounding receptacles and plugs, 30A 3 Phase,120/208 V, 18-30P, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
All Portable
Current
30 Amp
Material
Composite
NEMA
18-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
Standard Sized
Tc Connection
Terminal Screws
Type
Insulgrip
Voltage
120 Volt
Wattage
6240 Watt
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585015460
Color
Black,White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358501546
Weight
0.1700 lb
Features
  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
  • 30A
  • 3 Phase Y 120/208V AC
  • 4 Pole
  • 4 Wire Non-Grounding
Listings
  • UL Listed File E1706
  • Certified to CSA
