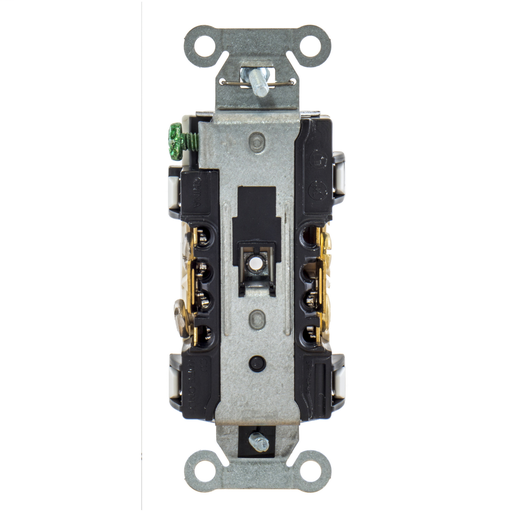

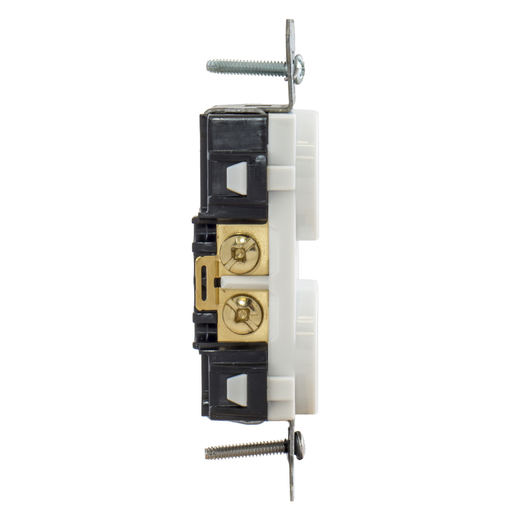

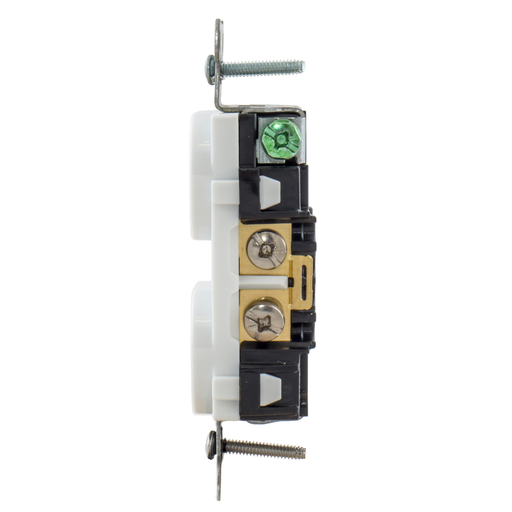

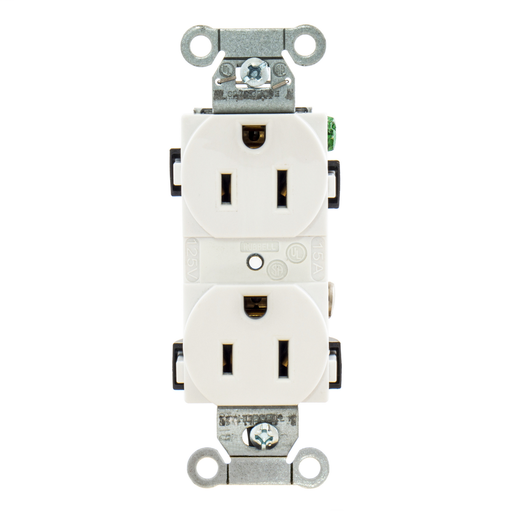

Hubbell BR15WHI 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Nylon Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR15WHI | Codale Part # 3412274
$2.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Face Material
Nylon
Grade
Commercial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Smooth Face
Tc Connection
Back and Side Wired
Type
Standard
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10
Wire Type
Grounding

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585127972
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358512797
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.3 Inch
Width
1.34 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
  • Certified to CSA 22.2, No. 42
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Easy access split circuit tab
  • Nylon face and base
  • Wrap-around galvanized steel strap
  • Triple wipe contacts
