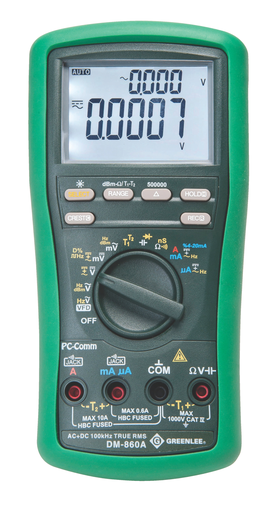

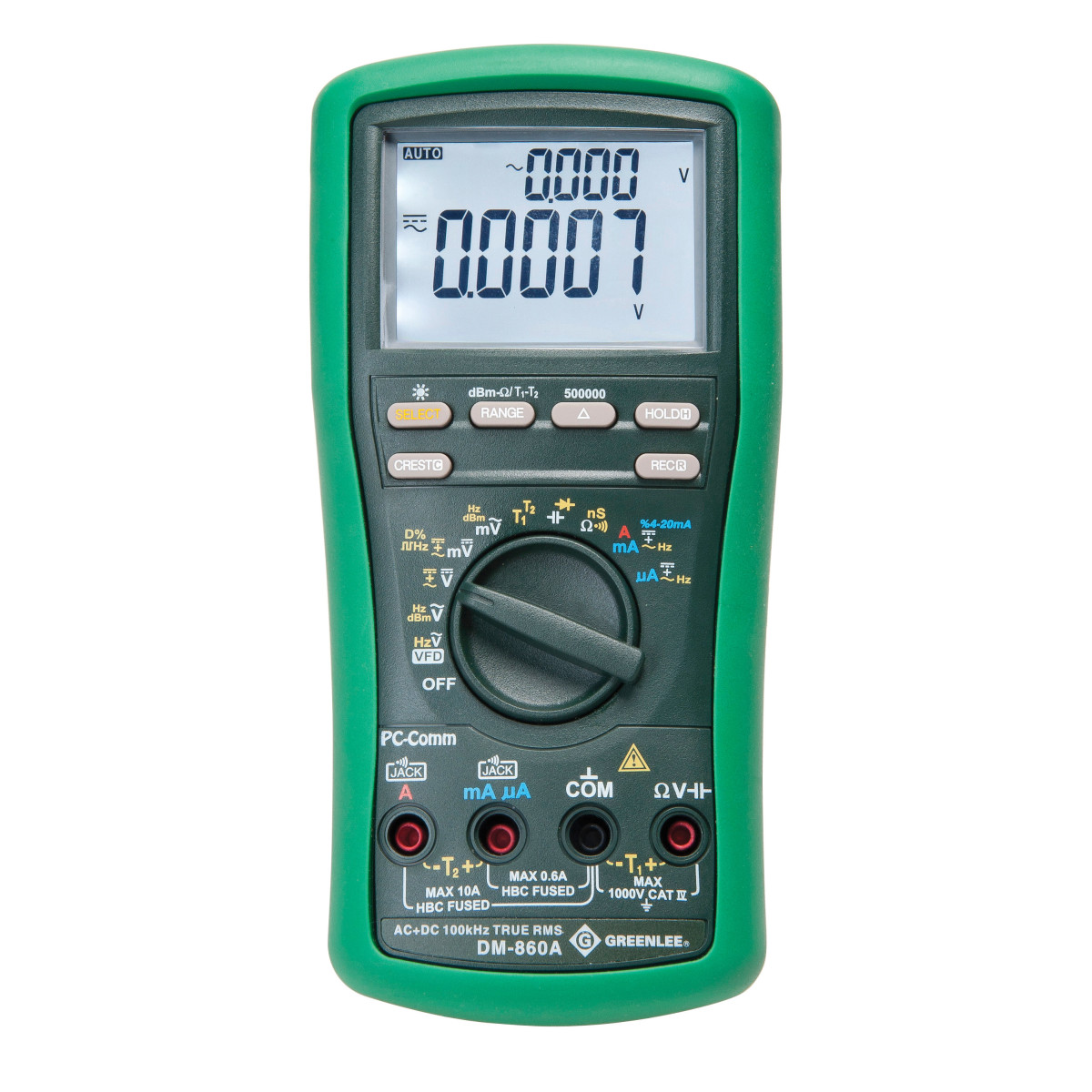

Greenlee DM-860A-C Multi Meter, 500k Counts

Manufacturer: Greenlee | Catalog # DM-860A-C | Codale Part # 3412753

$2,389.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

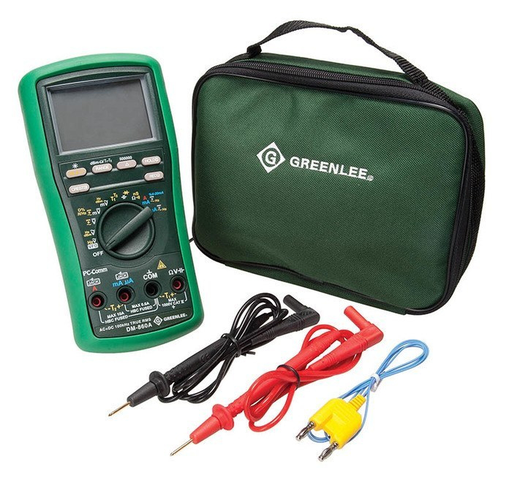

ESM™ Industrial 500,000 Count Digital Multimeter, Calibrated. True RMS, 5-5/6-digit, 500,000-count display for greater accuracy. Audible input alert helps avoid damage to meter. Record max, min, and max-min and data hold. Crest capture (peak hold) max, min and max-min readings. Relative offset display mode makes monitoring relative measurement changes simple. Performs frequency, temperature and capacitance measurements, plus diode and continuity tests. Measures temperatures up to 1832.F. Autoranging for convenient operation - and to save you time. 42-segment analog bar graph display capability makes it easy to view quick changes. Bright, backlit display is easy to read under any light condition. RS-232 capable, may be connected to a PC for extended measurement capability with optional interface DMSC-9. Accessories included: (1)9V battery, bead temperature probe (400.F/ 204.C max.), test leads, protective boot and carrying case. Lifetime Limited Warranty. Includes Certificate of Calibration.

Technical Information

Applications
For Cold Temperature, Frozen Surfaces, Performs Well in Autoclave Uses, Freezer Uses
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Temperature Rating
1832 degrees F
Type
Industrial, Imaging, True RMS
Voltage
9 Volt

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310020691
Product UPC
78331002069
Weight
1.5000 lb

Certifications and Compliance

Country of Origin
Taiwan
Features
  • True RMS, 5-5/6-digit, 500,000-count display for greater accuracy
  • Audible input alert helps avoid damage to meter
  • Record max, min, and max-min and data hold
  • Crest capture (peak hold) max, min and max-min readings
  • Relative offset display mode makes monitoring relative measurement changes simple
  • Performs frequency, temperature and capacitance measurements, plus diode and continuity tests
  • Measures temperatures up to 1832°F
Application
  • Performs Resistance, Conductance, Frequency, Duty Cycle, Temperature And Capacitance Measurements, Plus Diode And Continuity Tests
