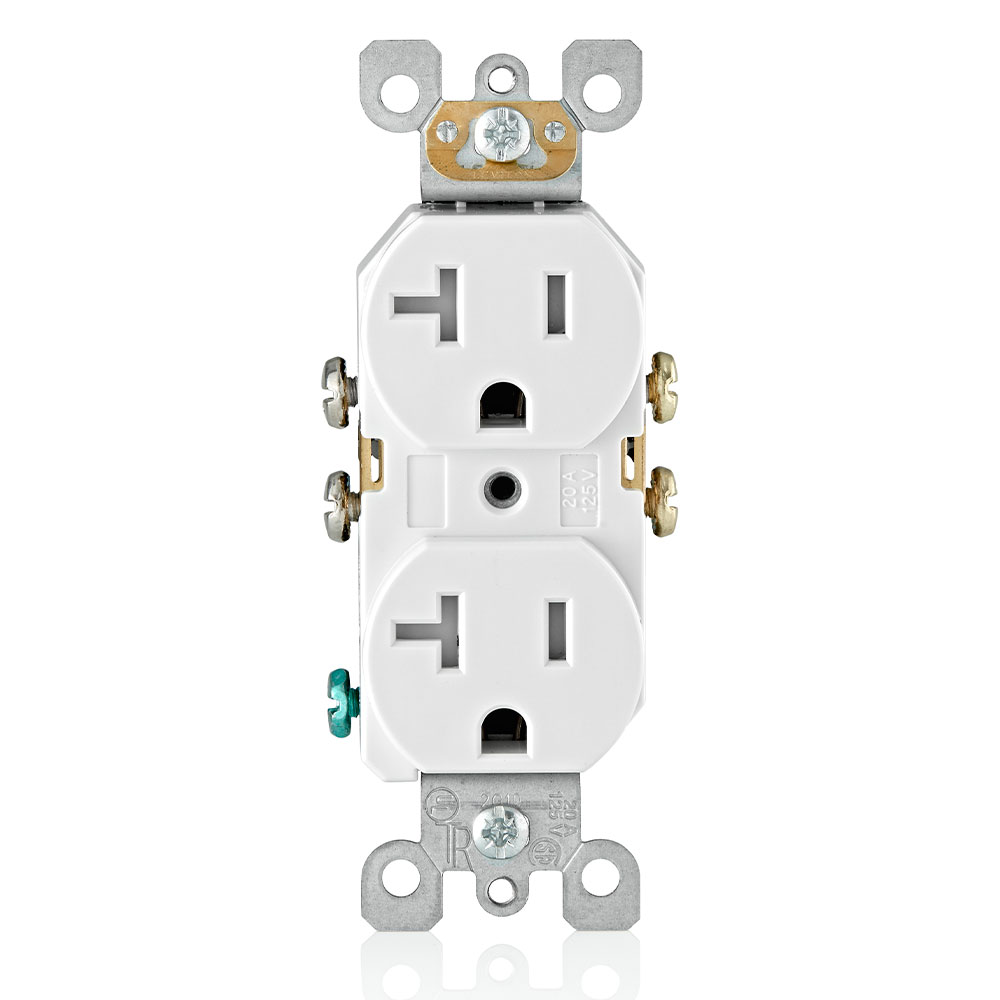

Product image for Leviton T5820-W  20A 125V Tamper-Resistant Duplex Receptacle, Residential Grade, Self-Grounding, Side Wired Only - White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Leviton T5820-W  20A 125V Tamper-Resistant Duplex Receptacle, Residential Grade, Self-Grounding, Side Wired Only - White

Manufacturer: Leviton | Catalog # T5820-W | Codale Part # 3413198
$8.32/ea
ea
Log in or register to view your price, purchase history, and more!
1,278 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp 125 Volt, Duplex Receptacle, Straight Blade, Residential Grade, Self Grounding, White

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Thermoplastic Nylon
Device Type
Duplex Receptacle
Face Material
Nylon
Grade
Commercial
Grounding
Self-Grounding
Material
Thermoplastic
Mounting Type
Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Standard
CSA,NOM,UL
Termination Type
Side Wire
Torque
14 lb-in
Type
Tamper-Resistant
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT RESIDENTIAL

General Product Info

12-Digit UPC
078477450215
Color
White
Finish
Matte
Product Type
Standard
Product UPC
07847745021
Weight
0.2160 lb

Dimensions

Height
4.2 Inch
Length
1.351 Inch
Width
1.184 in

Certifications and Compliance

Country of Origin
China
Features
  • Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out
  • TR symbol on receptacle face assures they meet the NEC Section 406.11 code requirements
  • Ultrasonically welded for additional assembly security
  • Base and face made of high impact thermoplastic
  • Convenient break-off plaster ears for best flush alignment
  • Self-grounding clip staked on, will never fall off
  • Easily accessible break-off tabs when split feed wiring is required; allows easy two circuit conversion
  • Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
  • SAFE - Tamper-Resistant offers protection from electrical shocks
  • DURABLE - Impact-resistant thermoplastic nylon construction
  • EASY - Side wiring for easy installation
  • CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
Color Variations
  • Brown
NEMA
  • 5-20R
Patents
  • US8242362
