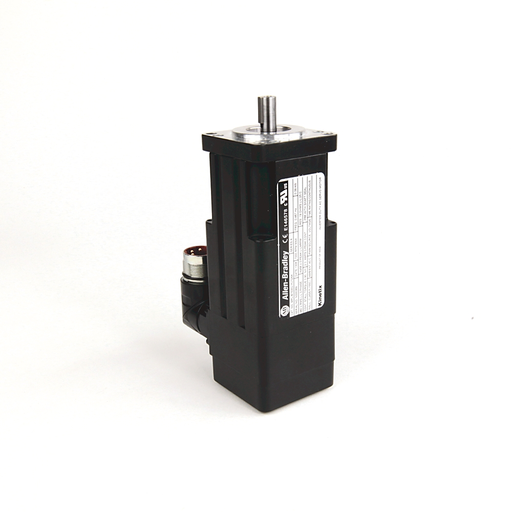

Allen-Bradley MPL-B1530U-VJ72AA 480 VAC Rotary Servo Motor

Manufacturer: Allen Bradley / Rockwell | Catalog # MPL-B1530U-VJ72AA | Codale Part # 3413223
$2,132.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
MP-Series MPL 480V AC Rotary Servo Motor

Technical Information

Enclosure
Keyed Shaft Extension
Frame
15 = 63 mm (2.48 in.)
Mounting Type
IEC Metric, Free Mounting Holes (Type FF)
RPM
7000 rpm
Standard
CE,CUL,KC,UL
Tc Connection
SpeedTec DIN Connector, Right Angle, 180 Rotatable (Quick Connect)
Type
Standard, Low Inertia, Brushless, Rotary
Voltage
460 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
MP-Series

General Product Info

12-Digit UPC
884951213814
Product UPC
88495121381
Weight
4.0900 lb
Features
  • Low-profile, field-reversible motor connectors for minimal servo motor impact on machine design
  • Continuous stall torque of 0.26163 Nm (2.31440 lb-in.)
  • DIN connector versions allow flexible orientation of connectors and use of a single cable family with all MP-Series motors
  • Peak torque of 0.77278 Nm (6.82460 lb-in.)
  • Integral 24V brake option
