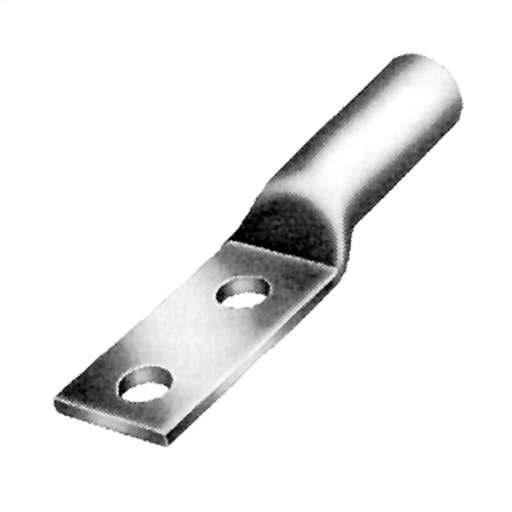

Product image for Burndy YA31A9N100T38E AL Terminal, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13, End Cap, UL/CSA, 90.C, Up to 35kV, Color Code, Die Index
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YA31A9N100T38E AL Terminal, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13, End Cap, UL/CSA, 90.C, Up to 35kV, Color Code, Die Index

Manufacturer: Hubbell-Burndy | Catalog # YA31A9N100T38E | Codale Part # 3415508
$59.34/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
350 kcmil, AL Terminal, One Hole, 3/8", Stud Size, Narrow Tongue, Internal Chamfer, Tin Plated, Prefilled PENETROX?, End Cap, AL9CU, UL/CSA, 90?C, Up to 35kV, E-Line Series, Brown Color Code, 299 Die Index.

Technical Information

Applications
YA-E Equipment terminals are designed to provide replacements for original equipment mechanical or other compression terminals
Color Coding
Brown
Conductor Size
350 kcmil
Connection Type
Terminal
Material
Aluminum
Number of Holes
2 Hole
Type
YA-E
Voltage
35,000 Volt
Wire Size
350 kcmil

Manufacturer Information

Brand
Burndy
Sub Brand
Terminals, HYLUG

General Product Info

12-Digit UPC
781810290262
Color
Brown
Finish
Tin Plated
Product UPC
78181029026
Weight
0.1900 lb

Dimensions

Height
1.1 Inch
Length
3.59 Inch
Width
1 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight
