HWDK HBL47CM00 LKG DUP RCPT, CM, 15

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL47CM00 | Codale Part # 3415730
$106.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

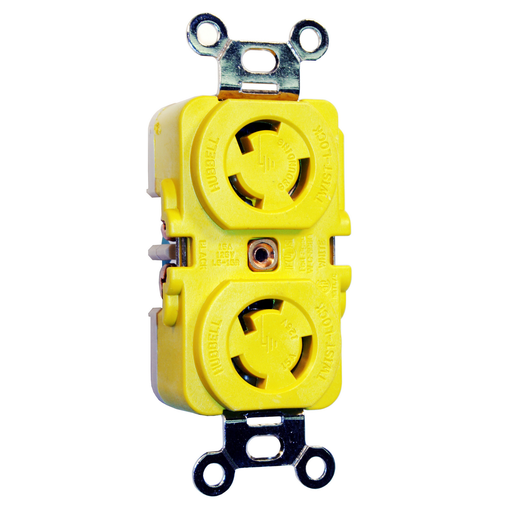

Locking Devices, Twist-Lock®, Marine Grade, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Yellow RTP Face.

Technical Information

Amperage
15 Amp
Applications
Marine Wiring Devices
Base Material
RTP
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP
Grade
Marine
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
L5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585393971
Color
Yellow
Environmental Conditions
Corrosion-Resistant
Product UPC
78358539397
Weight
0.25 lb

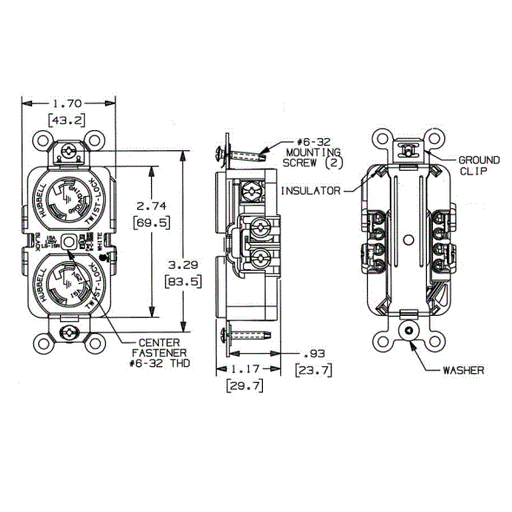

Dimensions

Height
1.17 Inch
Length
3.29 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • Single point break-off tabs
  • Mounting strap tabs lock the body and base together
  • Corrosion Resistant
