Burndy YHD5 Compression Line Tap Connector for Alumminum to Copper and Aluminum to Aluminum applications,147 H,188 L,87 W

Manufacturer: Hubbell-Burndy | Catalog # YHD5 | Codale Part # 3416644
$4.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Compression Line Tap Connector for Alumminum to Copper and Aluminum to Aluminum applications,1.47 H,1.88 L,.87 W.

Technical Information

Applications
For Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors
Conductor Size
3/0 AWG-300 kcmil
Conductor Type
ACSR, ACSR Compact, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size
0.87 IN Height X 1.47 IN Width X 1.88 IN Length
Tap Size
1/0, 2, 6, 4, 3.3, 3, 1 AWG
Type
YHD

Manufacturer Information

Brand
Burndy
Sub Brand
Loktap™

General Product Info

12-Digit UPC
781810139080
Product UPC
78181013908
Used With
Mechanical or Hydraulic Tools and Matching O and D3 Die Set, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors
Weight
0.1400 lb

Dimensions

Height
0.87 Inch
Length
1.88 Inch
Overall Length
48 mm
Width
1.47 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • LOKTAP™ compression connectors are high quality, range-taking devices accommodating many combinations of conductor

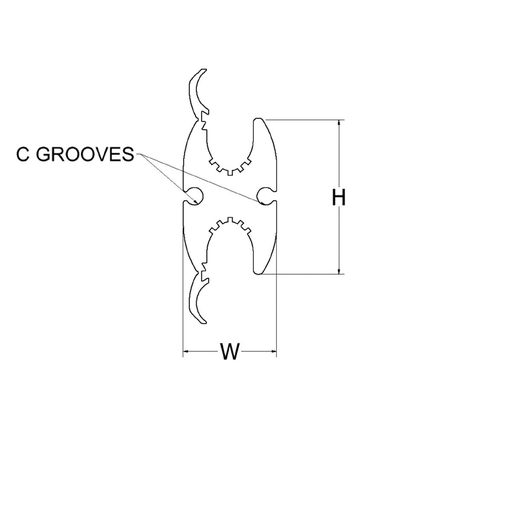

  • LOKTAP™ connectors feature a C groove on both sides of the connector for use in street lighting applications
