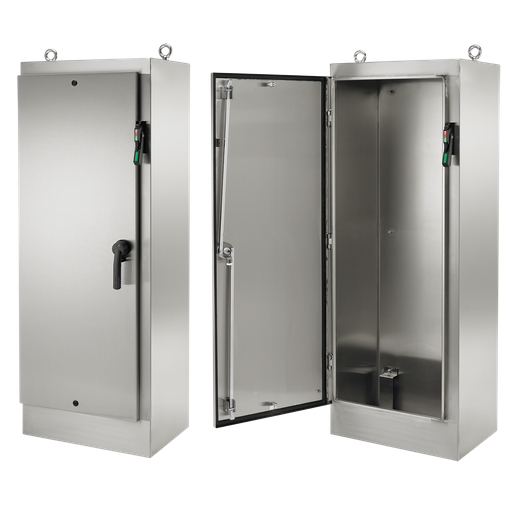

Product image for Hoffman A72HXS3224SSLPQT 72.06 x 32.5 x 24.06 Inch 14 Gauge 304 Stainless Steel NEMA 4X 1-Door Free Stand Disconnect Enclosure
Image thumbnail 0
Image thumbnail 1
Email

Hoffman A72HXS3224SSLPQT 72.06 x 32.5 x 24.06 Inch 14 Gauge 304 Stainless Steel NEMA 4X 1-Door Free Stand Disconnect Enclosure

Manufacturer: nVent Hoffman | Catalog # A72HXS3224SSLPQT | Codale Part # 3417435
$14,667.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
This single door, stainless steel, disconnect enabled enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
IP Rating
66
Material
Stainless Steel
Size
72.13x32.50x24.12 in
Standard
12,4,4X,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX,NEMA/EEMAC: Type 3R,Type 3R,UL508A Listed
Type
Preferred Cutout

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510191719
Color
Unpainted
Finish
Brushed
Product UPC
78351019171
Weight
300 lb

Dimensions

Depth
24.06 Inch
Height
72.06 Inch
Length
40 Inch
Thickness
1.98 mm
Width
32.5 in
DISK UNSPSC
39121324
Features
  • Disconnect enabled enclosure is designed to house electronic controls
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle; back die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
  • Black Die-Cast PowerGlide handle has integral screwdriver defeater
  • Collar studs on inside of enclosure back for optional mounting panels
  • Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Bonding provision on door; grounding stud on body
  • High-impact plastic Data Pocket kit included with enclosure
  • Accessory mounting channel provided in enclosure
