Burndy YSHG3931 Copper Compression Double H- Tap Connector, 4/0 - 1/0 AWG (Tap 1)/ 1 - 6 AWG ( Tap 2)/ 2 -14 AWG (Tap 3), # 6 Rebar/ 1" Cu Clad Rod/ 3/4" Ground Rod

Manufacturer: Hubbell-Burndy | Catalog # YSHG3931 | Codale Part # 3418198
$125.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

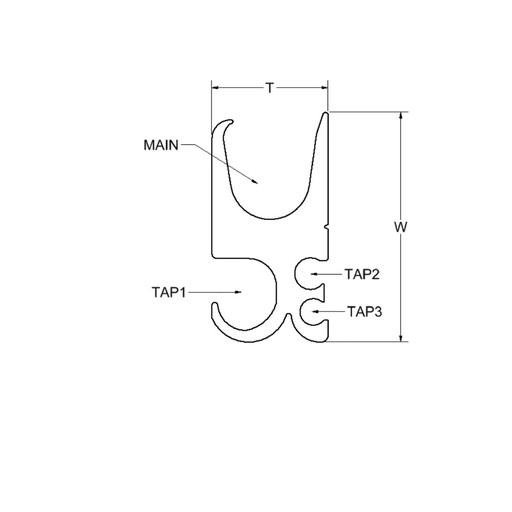

Copper Compression Double H- Tap Connector, 4/0 - 1/0 AWG (Tap 1)/ 1 - 6 AWG ( Tap 2)/ 2 -14 AWG (Tap 3), # 6 Rebar/ 1" Cu Clad Rod/ 3/4" Ground Rod.

Technical Information

Applications
For Direct Burial In Earth Or Concrete
Conductor Size
350/400/500 kcmil
Connection Type
H-Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size
2.34 IN Width X 2.97 IN Length X 1.5 IN Depth
Tap Size
4/0, 2/0, 3/0, 1/0 AWG
Type
Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810129685
Product UPC
78181012968
Weight
1.3600 lb

Dimensions

Height
2.97 Inch
Length
2.34 Inch
Overall Length
2.34 in
Width
2.97 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • UL467 Listed: Suitable For Direct Burial In Earth Or Concrete, Material Is High Conductivity Copper Extrusion: Minimizes Resistance, Eliminates Corrosion Due To Dissimilar Metals, Grooves Are Prefilled With PENETROX E2 Oxide Inhibitor And Individually Sealed: Inhibits Moisture And Contaminants Ensuring Electrical Integrity, Rebar Size: #6, Ground Rod Size: 1 IN, Die Index: KR Element A, Wire Entry: Double, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, PYFR Die, (2), Conductor Type: Run: Rebar, Ground Rod, Copper Conductor, Tap1: Copper Wire, Tap2: Copper Wire, Tap3: Copper Wire, Conductor Size (run - Range): 350 - 500 KCMIL, Shape: H, Conductor Size (tap Range): Tap1: 1/0 - 4/0 AWG, Tap2: 6 - 1 AWG, Tap3: 14 - 2 AWG
