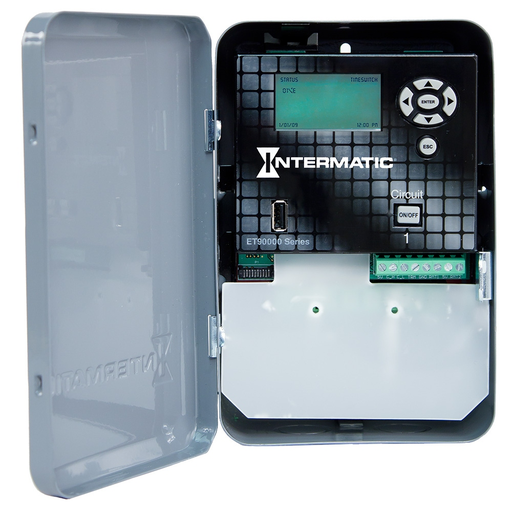

Intermatic ET90115C NEMA 1 Steel Case 365 Day 120 to 277 VAC 60 Hz 30 Amp 1-Circuit SPDT Astronomic Time Switch

Manufacturer: Intermatic | Catalog # ET90115C | Codale Part # 3418980
$997.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.

Technical Information

Action
SPDT
Amperage
20 Amp
Applications
General Purpose, Lighting, HVACR
Connection Type
Wire Lead
Contact Configuration
SPDT - 1 NO/1 NC
Contact Rating
5 A at 12 - 240 VAC (Tungsten NO), 30/20 A at 12 - 240 VAC (General Purpose and Resistive NO), 10 A at 12 - 240 VAC (General Purpose and Resistive NC), 20/10 A at 28 VDC (General Purpose and Resistive NO/NC), 20/3 A at 120 - 277 VAC (Ballast NO/NC), 470 VA at 12 - 240 VAC (NO), 275 VA at 12 - 240 VAC (NC)
Enclosure
Type 1 Steel
Enclosure Rating
1
Enclosure Type
NEMA Type 1
Frequency
50/60 Hz
Material
Steel
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Cycles
ON-OFF-ON
Operating Temperature
-40 to 120 degrees F, -40 to 50 degrees C
Power Consumption
16 W
Size
7.8 HEIGHT X 5.1 WIDTH X 3.0 DEPTH IN, 198 HEIGHT X 128 WIDTH X 76 DEPTH CM
Standard
CCSAus Certified,CULus Listed,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPDT
Tc Connection
Wire Lead
Temperature Rating
-40 to 120 degrees F
Type
Astronomic, Electronic, 1-Pole
Voltage
277 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275124837
Color
Gray
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827512483
Used With
Lighting
Weight
3.8667 lb

Dimensions

Depth
3 Inch
Height
7.8 Inch
Warranty Length
3 yr
Width
5.1 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately)
  • Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
  • 30 A rated contacts
  • 100-hour supercapacitor eliminates the need for batteries
  • USB connection for uploading, downloading and transferring programs
  • Easy-to-follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware can be upgraded in-field via USB or Ethernet
  • Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
