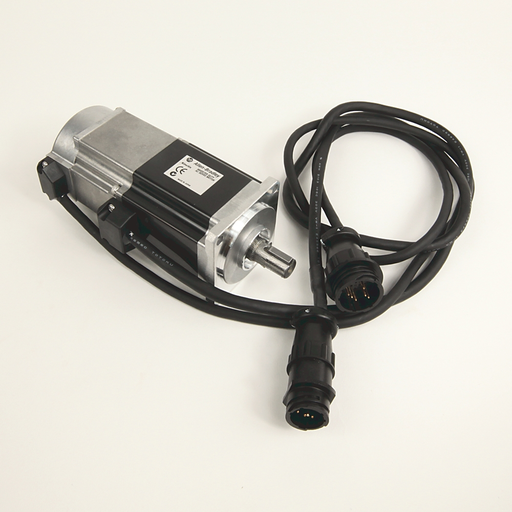

Allen Bradley TLY-A230P-BJ64AA TL-Series 24V DC Brake Servo Motor

Manufacturer: Allen Bradley / Rockwell | Catalog # TLY-A230P-BJ64AA | Codale Part # 3420801
$1,739.48/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
TL-Series 24V DC Brake Servo Motor

Technical Information

Applications
TL-Series
Enclosure
IP65 Housing/Shaft Key/No Shaft Seal
Frame
70 mm (2.75 in.) or NEMA 23
Mounting Type
70 Mm Bolt Circle Metric Flange
RPM
5000 rpm
Standard
CE,KC
Tc Connection
1 m Cable with Circular Connector
Torque Rating
1.16 N-m
Type
Standard (Metric), Low Inertia
Voltage
230 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
TL-Series

General Product Info

12-Digit UPC
820919822018
Product UPC
82091982201
Weight
5.1300 lb
Features
  • Provides an economy solution to meet wide ranges of applications
  • Available in 8 frame sizes: 46, 70, 90, 100, 115, 145, 200, 235 mm
  • Rated power from 50 W to 15 kW
  • UL Recognized to applicable UL and CSA standards, and CE marked for applicable directives
  • 24-bit high-resolution feedback
  • Optimized to match with drive ratings for optimum system sizing
  • Optimally designed with Kinetix® 5100 servo drive for system performance
  • Integral 24V DC brake option
  • Tight position control with 17-bit resolution
  • Single-turn and multi-turn (battery required) option with one physical feedback device
  • Integral 24V brake option
