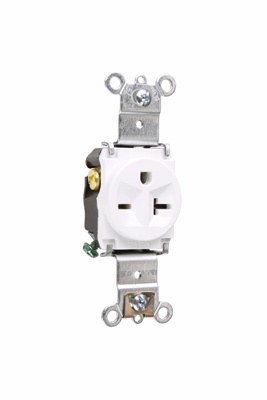

Pass & Seymour 5871-W Single Receptacle, HD Spec Grade, 20A 250V, Back & Side Wired - White

Manufacturer: Legrand Pass & Seymour | Catalog # 5871W | Codale Part # 3421092
$40.20/ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Back & Side Wire 20amp 250volt Gray

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall, Flush
NEMA
6-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x 1.093 W x 3.68 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Heavy Duty
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007587135
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
Product UPC
78500758713
UNSPSC
39121406

Dimensions

Depth
1.093 Inch
Height
3.28 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Eco-Benefit Information
  • RoHS Compliant
