Hubbell HBL7487N 15 Amp 125/250 VAC 3-Pole 3-Wire NEMA ML-3R Black Nylon Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7487N | Codale Part # 3421948
$72.71/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Screw Terminal, Black Nylon Flange.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
Nylon
Conductor Size
18-14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon

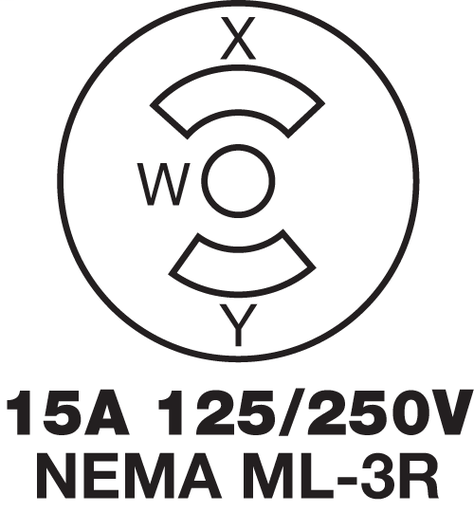

NEMA
ML-3R
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Midget Locking Devices
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Screw Terminal
Type
Flanged Receptacles
Voltage
125/250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585237473
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523747
Weight
0.05 lb

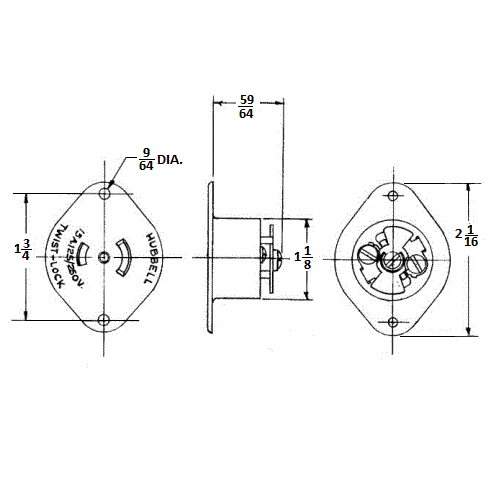

Dimensions

Height
0.92 Inch
Length
2.06 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Fully Insulated nylon casing with integral flange
  • Black color blends in with equipment
  • Standard
