Burndy B561 Horizontal Cable to Ground Rod Mold

Manufacturer: Hubbell-Burndy | Catalog # B561 | Codale Part # 3422312
$418.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Horizontal Cable to Ground Rod Mold

Technical Information

Applications

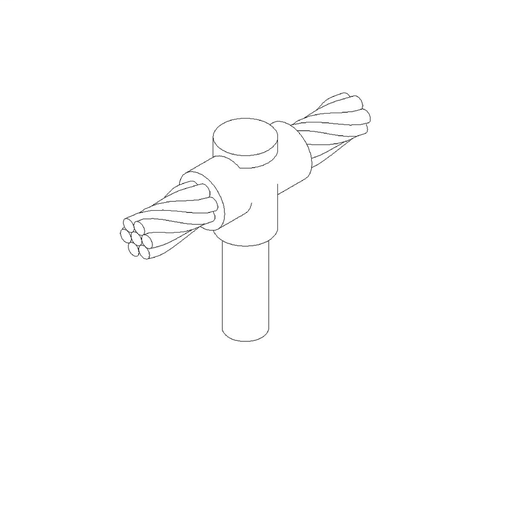

For Joining Horizontal Through Copper Cable to the Top of a Vertical Ground Rod
Conductor Size
4/0 AWG Tap
Material
Steel
Standard
UL
Type
Type BCR-2, Horizontal

Manufacturer Information

Brand
Burndy
Sub Brand
BurndyWeld®

General Product Info

12-Digit UPC
781810385784
Product UPC
78181038578
Weight
4.0000 lb

Dimensions

Height
4 Inch
Length
8 Inch
Width
4 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Type BCR-2 Molds Are Used To Join Horizontal Through Copper Cable To The Top Of A Vertical Ground Rod, Size Range Is 6 AWG Through 1000 KCMIL Concentric Stranded Copper Conductors, 1/2 IN Through 1 IN For The Ground Rod, Ground Rod Size: 3/4 IN, Conductor Type: Concentric Stranded Copper, Recommended Accessories: B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0304-00 File, B38-0330-00 Cable Clamp, Cartridge Type: Standard
