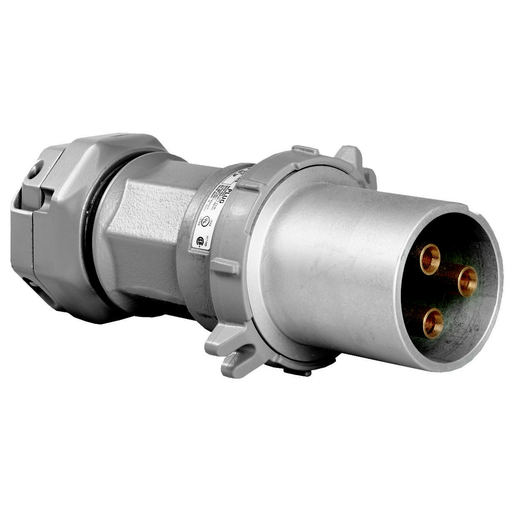

Hubbell M5200PS1 Marine PS, INS, Plug, 4P5W, 200A 600V, S1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M5200PS1 | Codale Part # 3422637
$4,262.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Marine Grade, Male Plug, 200A 600V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Technical Information

Amperage
200 Amp
Applications
Marine Wiring Devices
Conductor Size
1 AWG-250 kcmil
Cord Type
Portable
Current
200 Amp
Material
Composite
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
Standard Sized
Standard
CSA,CSA Spec. C22.2 No. 159,Type 4X,UL,UL 1010,UL 50,UL Standard 1682
Style
Corrosion Resistant,Standard Service
Tc Connection
Pressure Terminal Screws
Type
Male, Marine Grade
Voltage
250 Volt
Wattage
120000 Watt
Wire Size
1 AWG-250 kcmil

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585161815
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358516181
Weight
11.0500 lb

Dimensions

Height
6.1 Inch
Length
15.9 Inch
Width
8.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Locking ring provides UL Type 4X watertight, dust-tight seal
  • Catalog number and rating visible while in use
  • All-Brass sleeve contacts provide reliable electrical contact
  • Watertight
